Fastener Tightening Specifications






Fastener Tightening Specifications

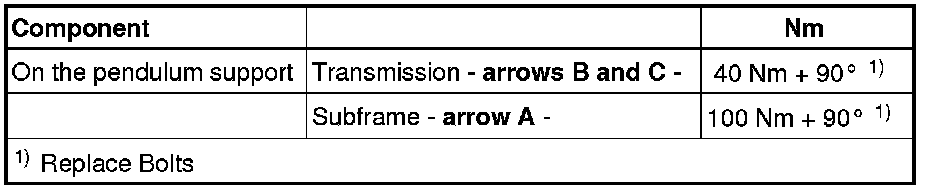

- Tighten pendulum support first to transmission - arrows B and C - and then to subframe - arrow A -.











- Tighten the pendulum support with new bolts.
