Seat Position Sensor
Seat Position Sensor
Removing
• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Service Precautions.
• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.
- Remove the driver seat:
• Manual front seat: => [ Front Seat ] Front Seat
• Power front seat: => [ Front Seat ] Front Seat.
- Attach the front seat to the fixture for seat repair (VAS 6136). Refer to => [ Installing Front Seat On VAS 6136 ] Installing Front Seat on VAS 6136.

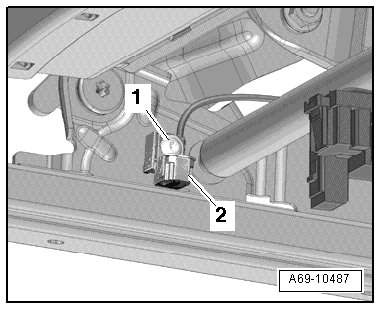

- Remove the bolt - 1 -.
- Unclip the seat position sensor - 2 - from the seat pan lower frame.
- Disconnect the wire from the seat position sensor and free it up.
- Remove the seat position sensor with the wires from the seat pan lower frame.
Installation
• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and Testing Procedures ] Service Precautions.
• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.
Install in reverse order of removal. Note the following:
• Make sure the connectors are installed all the way in and are secure.
Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.
- Connect the battery ground cable with the ignition turned on.
- If Airbag Malfunction Indicator Lamp (MIL) (K75) indicates a fault after installation, DTC memory must be checked, deleted and checked again.
For the correct tightening specifications; refer to => [ Seat Position Sensor Assembly Overview ] Description and Operation.
