Instrument Cluster

Instrument Cluster

• Do not disassemble instrument cluster.

• All warning lamps in instrument cluster are fitted with light-emitting diodes. In case an indicator lamp is malfunctioning, the instrument cluster must be replaced.

• It is not necessary to remove the steering wheel in order to remove the instrument cluster.

Removing

- If the instrument cluster with Instrument Cluster Control Module (J285) is replaced, select "Replace" function for respective control module in "Guided Functions" using the Vehicle diagnostic tester.

- Adjust steering wheel downward and to rear as far as possible, use entire adjustment range of steering column adjustment for this.

- Switch off ignition and remove ignition key.

- Remove gap cover. Refer to Storage Compartments and Covers.

- Place gap cover on upper steering column trim.

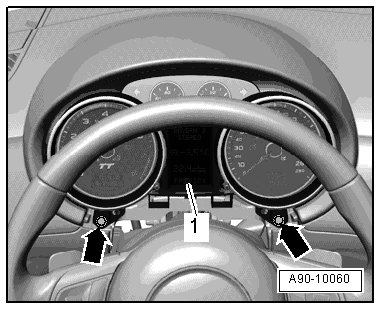

- Remove screws - arrows -.






- Pull instrument cluster - 1 - out until it lies on steering wheel.

- Disconnect the connector.

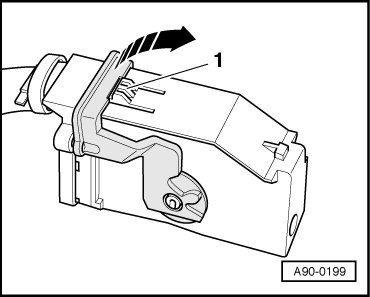

- To disconnect electrical connector, press catch - 1 -, turn retaining bracket in - direction of arrow - and remove connector.






- Remove instrument cluster to driver's side between steering wheel and instrument cluster.

Installing

• Tightening specification, refer to => [ Instrument Cluster and Clock Receiver Overview ] Instrument Cluster and Clock Receiver Overview.

Install in reverse order of removal. Note the following:

- Continue following instructions on Vehicle diagnostic tester with a new instrument cluster.
