Cylinder Head, Valvetrain
Special Tools
Special tools, testers and auxiliary items required

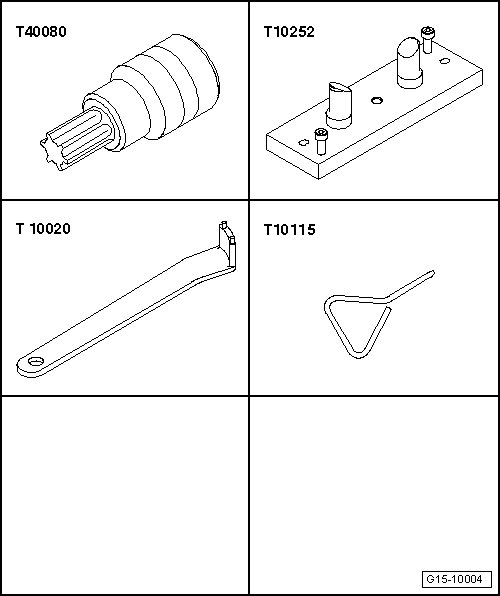

• Socket (T40080)
• Camshaft Clamp (T10252)
• Toothed Belt Tensioner (T10020)
• Locking Pin (T10115)

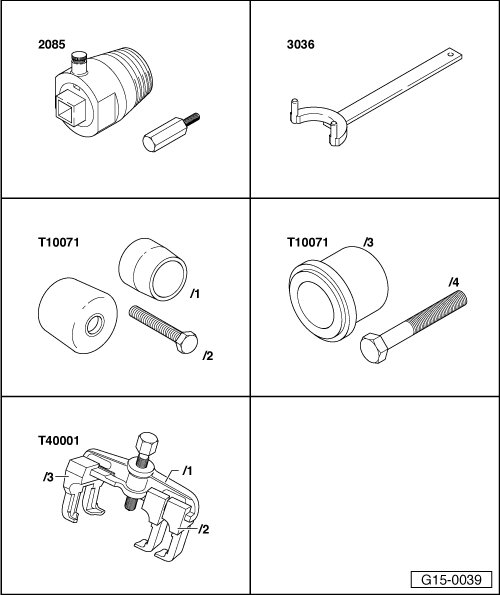

Special tools, testers and auxiliary items required
• Seal Puller - General Useage (2085)
• Retainer (3036)
• Assembly Tool (T10071)
• Puller (T40001)
• M12 nut, quantity: 2

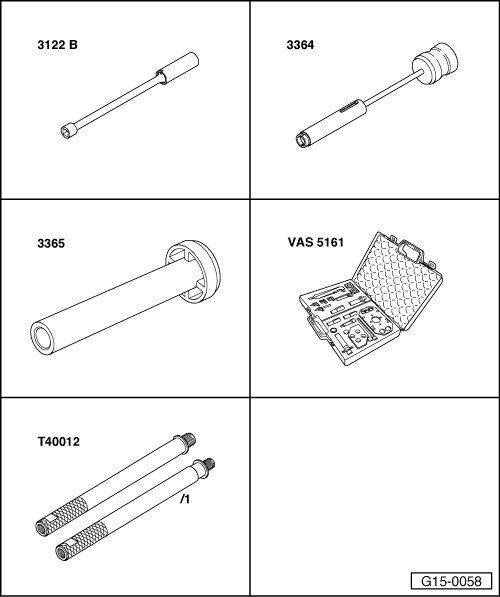

Special tools, testers and auxiliary items required

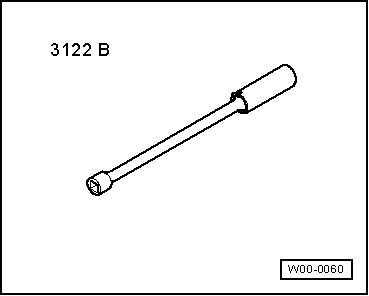

• Spark Plug Removal Tool (3122 B)
• Valve Seal Removal Tool (3364)
• Valve Stem Seal Driver (3365)
• Valve Cotters Asm/Dis-Asm Device (VAS 5161) with Guide Plate for 2.0L FSI Engine (VAS 5161/19B)
• Adapter (T40012)
Special tools, testers and auxiliary items required
• Spark Plug Removal Tool (3122 B)

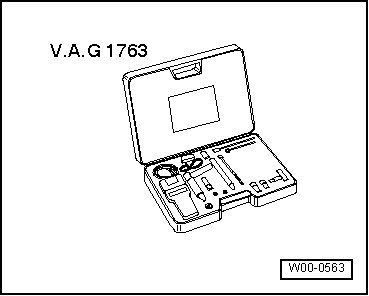

• Compression Tester (V.A.G 1763)

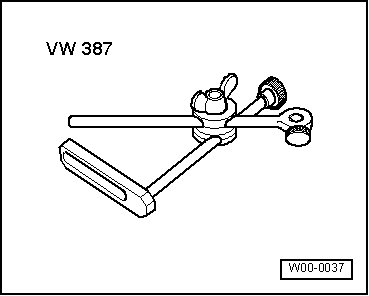

• Dial Gauge Holder (VW 387)

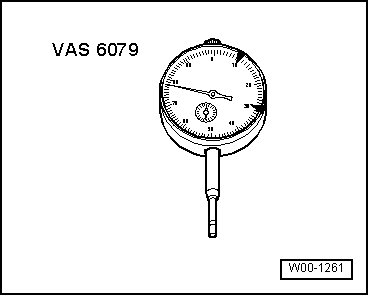

• Dial Gauge 0-10 mm (VAS 6079)

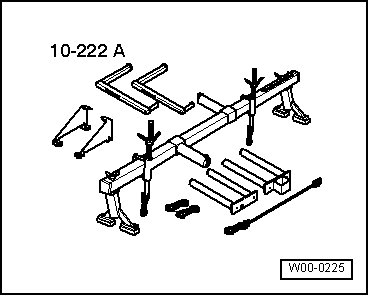

• Engine Support Bridge (10 - 222 A)

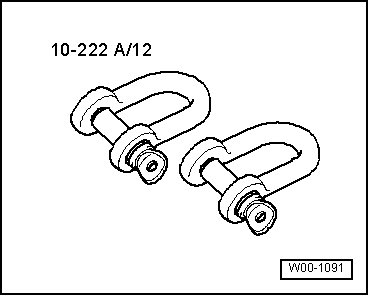

• Shackle (10 - 222 A /12)

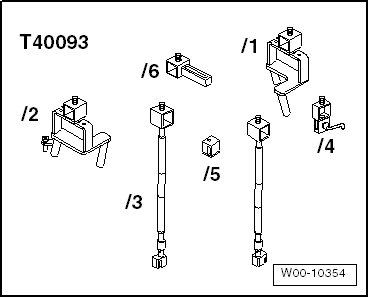

• Adapter (T40093/6) qty. 2
• Hose Clip Pliers (V.A.G 1921)

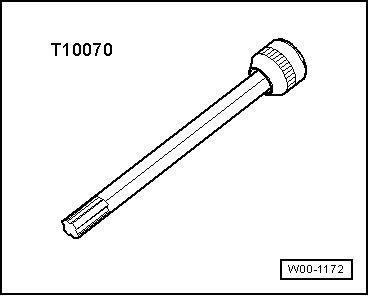

• Polydrive Bit and Drive Socket (T10070)
• Hose Clamps Up to 25 mm Dia. (3094)
• Engine and Transmission Holder (VAS 6095)
• Not illustrated:
• Cylinder Head Tensioning Device (VAS 6419)
