Engine, Installing
Engine, Installing
Tightening Specifications
• Tightening specifications only apply to lightly greased, oiled, phosphate or blackened nuts and bolts.
• Additional lubricants, such as engine or transmission oil are permissible, although lubricants containing graphite are not.
• Do not use any degreased parts.
• Tolerance for tightening specifications +/- 15%.
• For the correct tightening specifications, refer to => [ Engine and Transmission Mounts Overview ] Service and Repair.

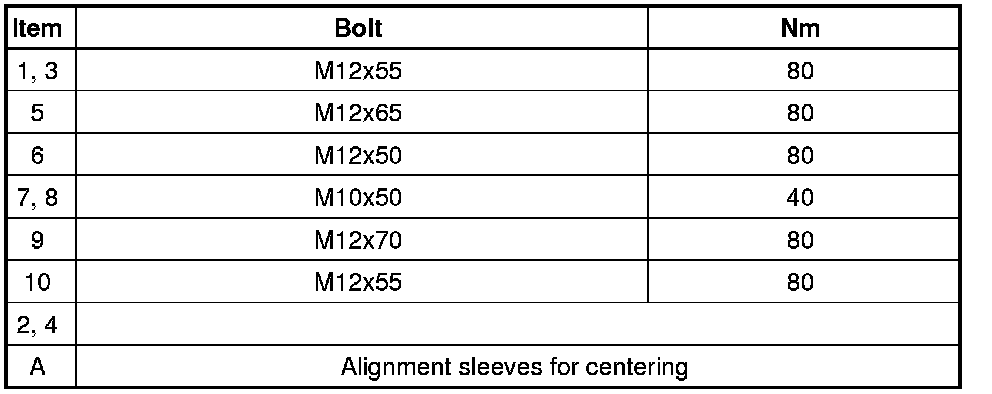

• Additional tightening specifications:
Mounting, S-Tronic Transmission to Engine
Procedure
Installation is done is reverse order, observe the following:
• Replace self-locking nuts and bolts.
• Always replace bolts that are tightened to torque as well as O-rings and gaskets.
• The hose supports, air guide pipes and hoses must be free of oil and grease before installing.
• Secure all hose connections with hose clamps appropriate for the model. Refer to the electronic parts catalog ETKA.
• To mount the charge hoses on their connectors securely, spray the bolts on the used clamps with rust remover before installing.
• During installation, cable ties must be installed at the same location.
- If no alignment sleeves for center engine and transmission are present in cylinder block, insert sleeves.
- If no needle bearing is installed in crankshaft, install needle bearing. Refer to => [ Needle Bearing on Crankshaft ] Needle Bearing on Crankshaft.
- Attach transmission to engine.
- Tighten the bevel box bracket.
- Guide engine/transmission assembly into body.

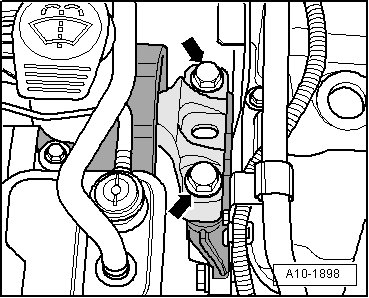

- First tighten the subframe bolts - arrows - on the engine side by hand.
- First tighten the subframe bolts - arrows - on the transmission side by hand.
• Only tighten the bolts to the specification when installing the subframe mount. Refer to => [ Subframe Mount, Adjusting ] Adjustments.
- Remove the engine/trans. support (T10012) from engine.
- Tighten the pendulum support bolts - 2 - and - 3 - to the transmission. Refer to => [ Engine and Transmission Mounts Overview ] Service and Repair.
- Install selector lever cable.
The shaft seal - arrow - in the driveshaft flange could be damaged.
• Press the engine/transmission assembly toward bulkhead while carefully guiding bevel box pins into driveshaft flange.
- Tighten the pendulum support bolt - 1 - to the subframe. Refer to => [ Engine and Transmission Mounts Overview ] Service and Repair.
- Tighten driveshaft with flexible disc on the bevel box.
The rest of the installation is performed in reverse order of removal, noting the following:
- Install the front exhaust pipe with the catalytic converter and front muffler. Refer to => [ Front Exhaust Pipe with Catalytic Converters and Front Muffler ] Service and Repair.
- Install exhaust system and align it free of stress. Refer to => [ Exhaust System, Installing ] Removal and Replacement.
- Install the Heated Oxygen Sensor (HO2S) (G39).
- Install drive axles.
- Install drive axle heat shield.
- Install A/C compressor.
- Install generator.
- Install the ribbed belt. Refer to => [ Ribbed Belt Tensioner ] Service and Repair.
- Install the radiator. Refer to => [ Radiator ] Radiator.
- Install fan shroud. Refer to => [ Fan Shroud ] Service and Repair.
- Install starter.
- Install the noise insulation frame and the noise insulation.
- Adjust the subframe mount. Refer to => [ Subframe Mount, Adjusting ] Adjustments.
- Install Engine Control Module (ECM).
- Electrical connections and routing.
- Install wiper arms.
- Follow measures after connecting battery.
- Engine oil level, checking.
Risk of destroying control modules with excess voltage.
• Do not use a battery charger for starting assistance!
- Fill with coolant. Refer to => [ Filling ] Service and Repair.
• Do not use drained coolant in the following situations:
• If the cylinder head or cylinder block was replaced.
• If the coolant is contaminated.
