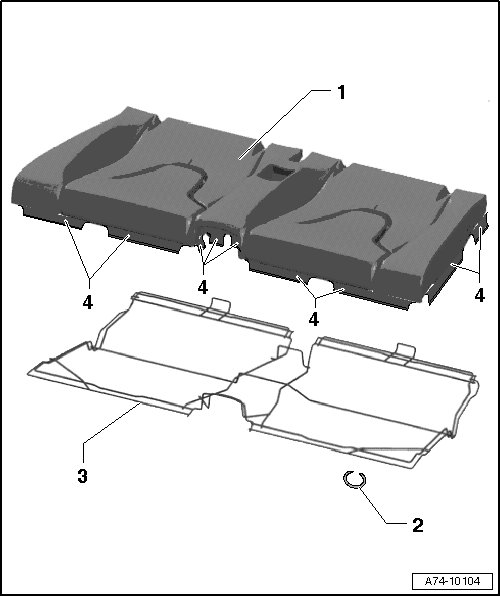

Bench Seat Cover and Upholstery Assembly Overview

Bench Seat Cover and Upholstery Assembly Overview






1 Cover with upholstery

• Removing and Installing, refer to => [ Bench Seat Cover and Upholstery ] Bench Seat Cover and Upholstery

•

2 Cushion clamp

• Quantity: 48

• Replacing

• Install in same location as before removal

Ends of upholstery clips must face in direction of upholstery after installing and must be bent correctly. Otherwise, there is a risk of injury.

3 Seat frame

4 Molding

• Sewn into cover
