Release Cable, Engaging In Handle

Release Cable, Engaging in Handle

Engaging in Handle

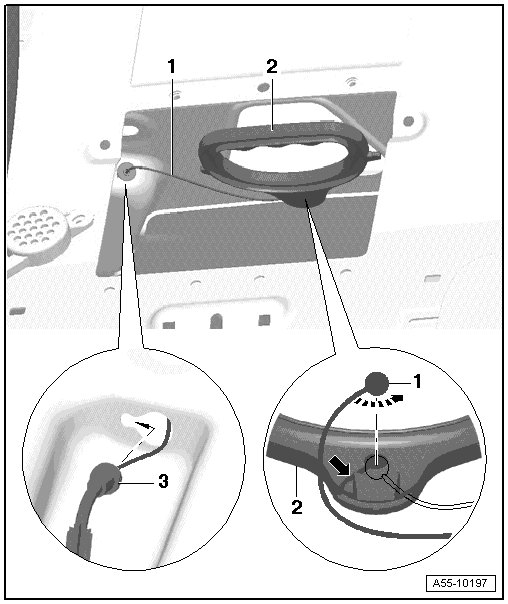

1 Release cable

• Engage release cable ball - 1 - in handle - 2 -.

The cable must be routed behind retaining tab as shown to ensure proper function.

2 Emergency release handle

3 Grommet

• Slide into end plate and engage at sides
