Diagram 30/2 (Tracks 1-14)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Navigation System Control Module with CD Drive, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

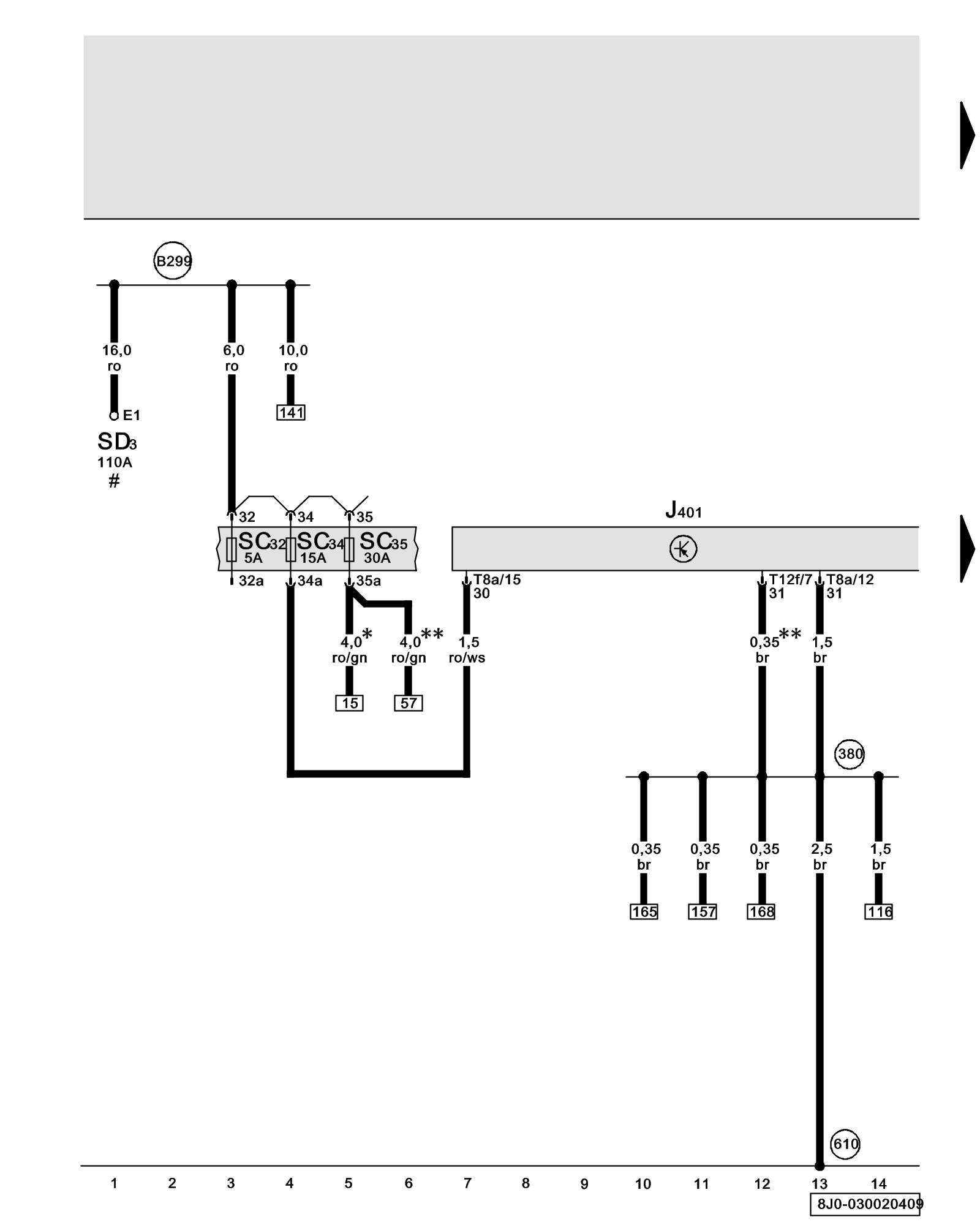

J401 - Navigation System Control Module with CD Drive Instrument Panel Wiring Harness Routing

SC32 - Fuse 32 (on fuse panel C)

SC34 - Fuse 34 (on fuse panel C)

SC35 - Fuse 35 (on fuse panel C)

SD3 - Fuse 3 (on fuse panel D) Fuses (SD) on Main Fuse Carrier

T8a - 8-Pin Connector, black, radio connector D

T12f - 12-Pin Connector, blue, radio connector B

(380) - Ground Connection 15 (in main wiring harness)

(610) - Ground Connection (Audio) (under center console, front) Locations

(B299) - Plus Connection 3 (30) (in main wiring harness)

* - Models with radio standard sound system (9VD)

** - Models with radio sound system BOSE (8RY)

# - Main fuse panel, in right rear luggage compartment on battery

Next Diagram 30/3 (Tracks 15-28)
