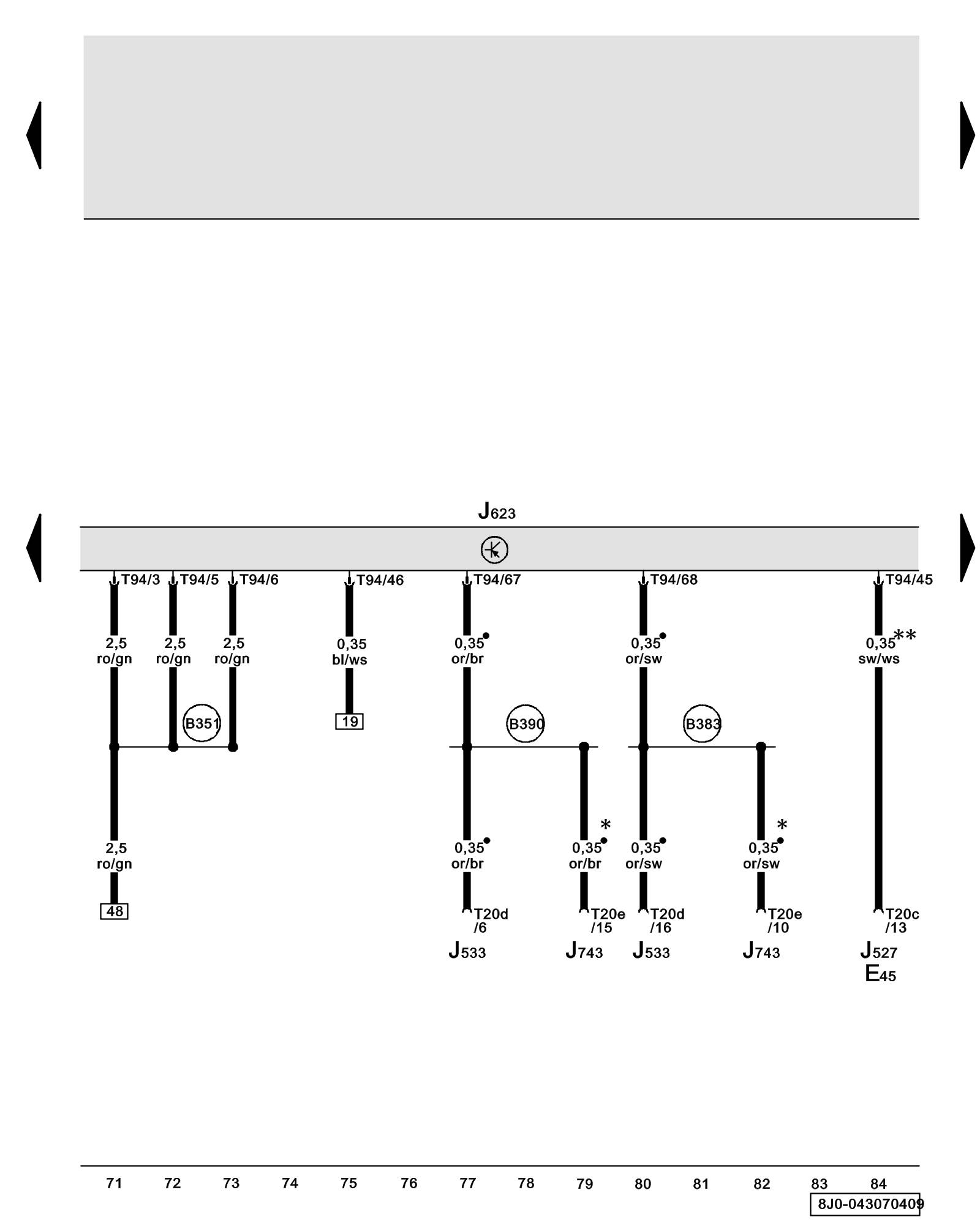

Diagram 43/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E45 - Cruise Control Switch

J527 - Steering Column Electronic Systems Control Module Component Locations

J533 - Data Bus On Board Diagnostic Interface Component Locations

J623 - Engine Control Module (ECM) Component Locations

J743 - Direct Shift Gearbox (DSG) Mechatronic 6-Speed DSG Transmission 02E Overview

T20c - 20-Pin Connector, black (Connector A), on steering column electronic systems control module

T20d - 20-Pin Connector, black, on data bus on board diagnostic interface

T20e - 20-Pin Connector, on Direct Shift Gearbox (DSG) Mechatronic

T94 - 94-Pin Connector, on engine control module (ECM)

(B351) - Plus Connection 2 (87a) (in main wiring harness)

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)

^ - CAN-Bus (data wire)

* - Models with direct shift gearbox 02E

** - Models with cruise control system

Previous Diagram 43/6 (Tracks 57-70)

Next Diagram 43/8 (Tracks 85-98)
