Diagram 43/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


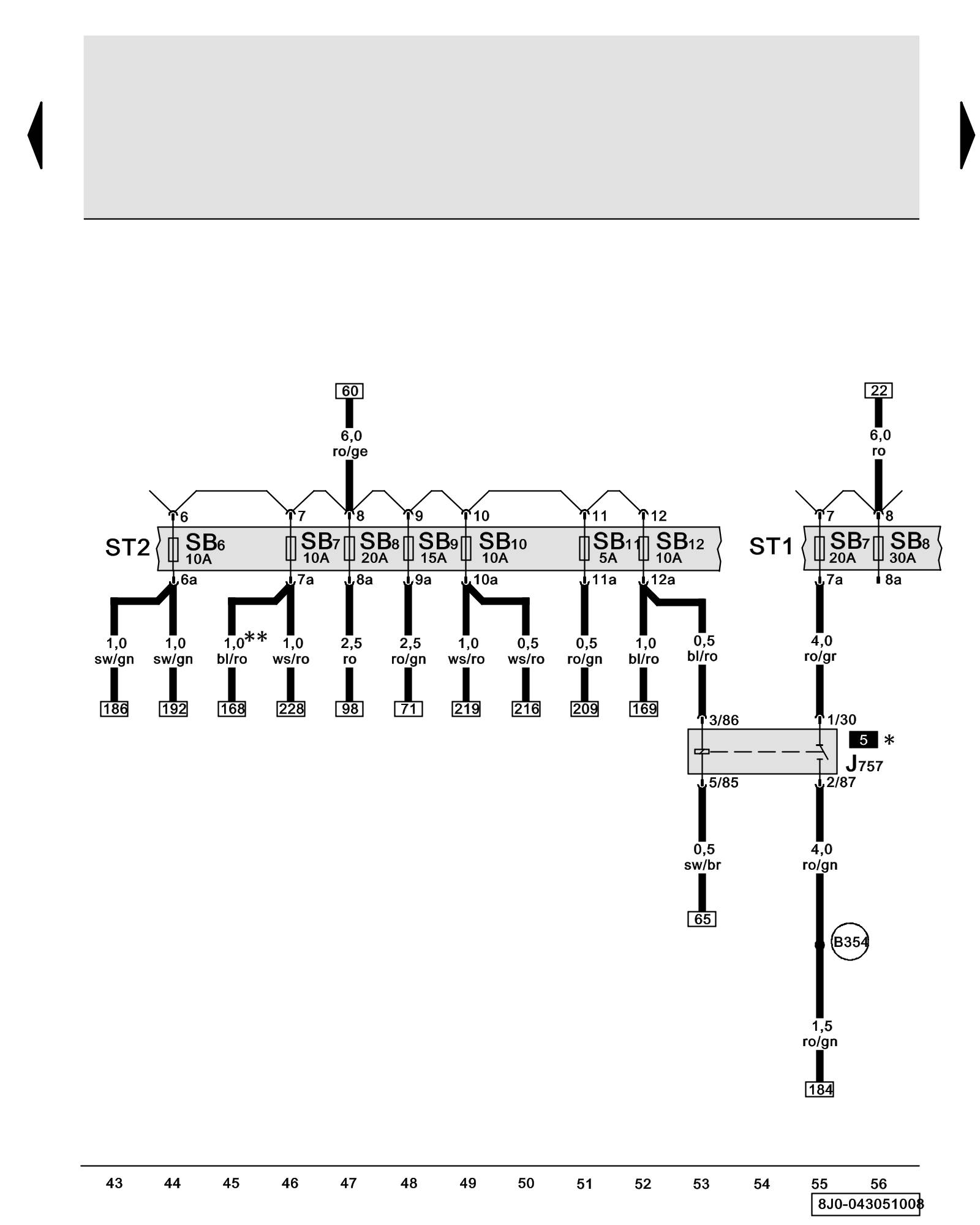

Engine Component Power Supply Relay, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J757 - Engine Component Power Supply Relay Relay carrier in electronics box engine compartment

SB6 - Fuse 6 (on fuse panel B) Locations

SB7 - Fuse 7 (on fuse panel B) Locations

SB8 - Fuse 8 (on fuse panel B) Locations

SB9 - Fuse 9 (on fuse panel B) Locations

SB10 - Fuse 10 (on fuse panel B) Locations

SB11 - Fuse 11 (on fuse panel B) Locations

SB12 - Fuse 12 (on fuse panel B) Locations

(B354) - Plus Connection 5 (87a) (in main wiring harness)

* - Relay and fuse carrier in electronics box engine compartment

** - Models with leak detection pump (LDP)
