Diagram 43/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

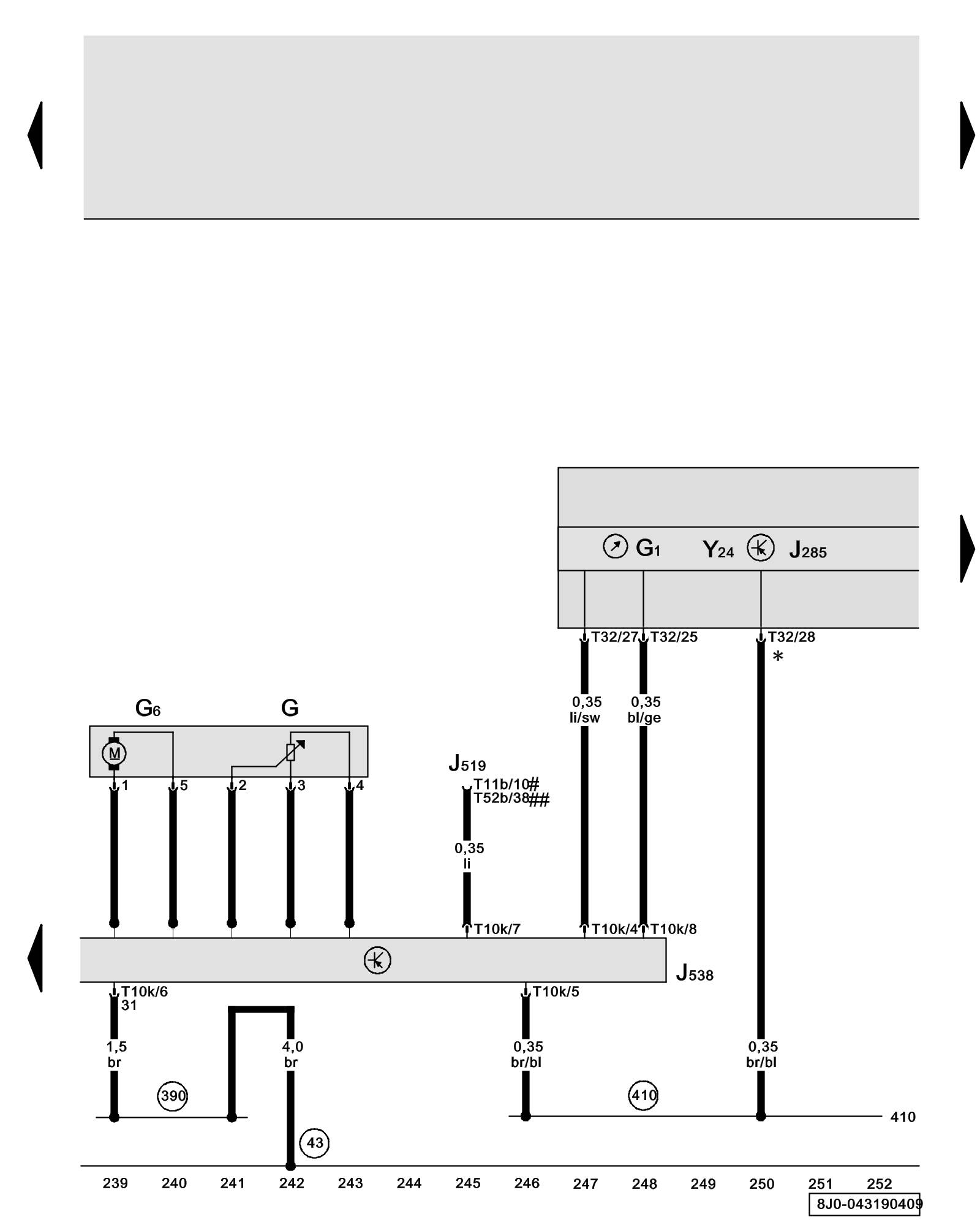

Instrument Cluster Control Module, Fuel Pump (FP) Control Module, Fuel Level Sensor, Fuel Gauge, Transfer Fuel Pump (FP)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G - Fuel Level Sensor Locations

G1 - Fuel Gauge

G6 - Transfer Fuel Pump (FP) Locations

J285 - Instrument Cluster Control Module Component Locations

J519 - Vehicle Electrical System Control Module Component Locations

J538 - Fuel Pump (FP) Control Module Component Locations

T10k - 10-Pin Connector, black, on fuel pump (FP) control module

T11b - 11-Pin Connector, black (Connector A), on vehicle electrical system control module

T32 - 32-Pin Connector, blue, on instrument cluster control module

T52b - 52-Pin Connector, yellow, on vehicle electrical system control module

Y24 - Display Unit in Instrument Cluster

(43) - Ground Connection (on right lower A-pillar) Locations

(390) - Ground Connection 25 (in main wiring harness)

(410) - Sensor Ground Connection 1 (in main wiring harness)

* - Output Sensor

# - Through May 2009

## - from June 2009
