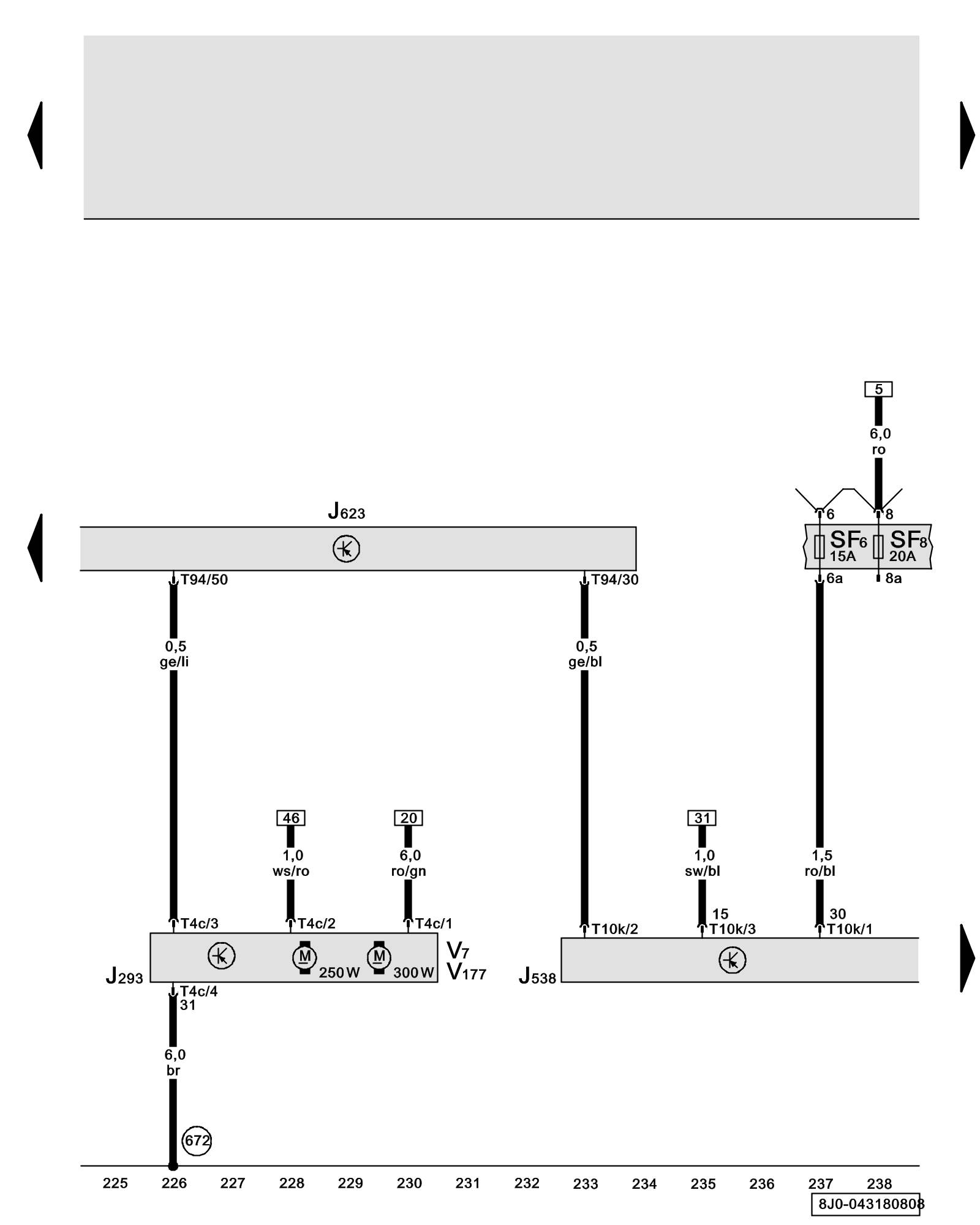

Diagram 43/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Fuel Pump (FP) Control Module, Coolant Fan Control (FC) Control Module, Coolant Fan





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J293 - Coolant Fan Control (FC) Control Module Locations

J538 - Fuel Pump (FP) Control Module Component Locations

J623 - Engine Control Module (ECM) Component Locations

SF6 - Fuse 6 (on fuse panel F) Locations

SF8 - Fuse 8 (on fuse panel F) Locations

T4c - 4-Pin Connector, black, on coolant fan control (FC) control module

T10k - 10-Pin Connector, black, on fuel pump (FP) control module

T94 - 94-Pin Connector, on engine control module (ECM)

V7 - Coolant Fan Locations

V177 - Coolant Fan 2 Locations

(672) - Ground Connection 2 (on left front long member) Locations
