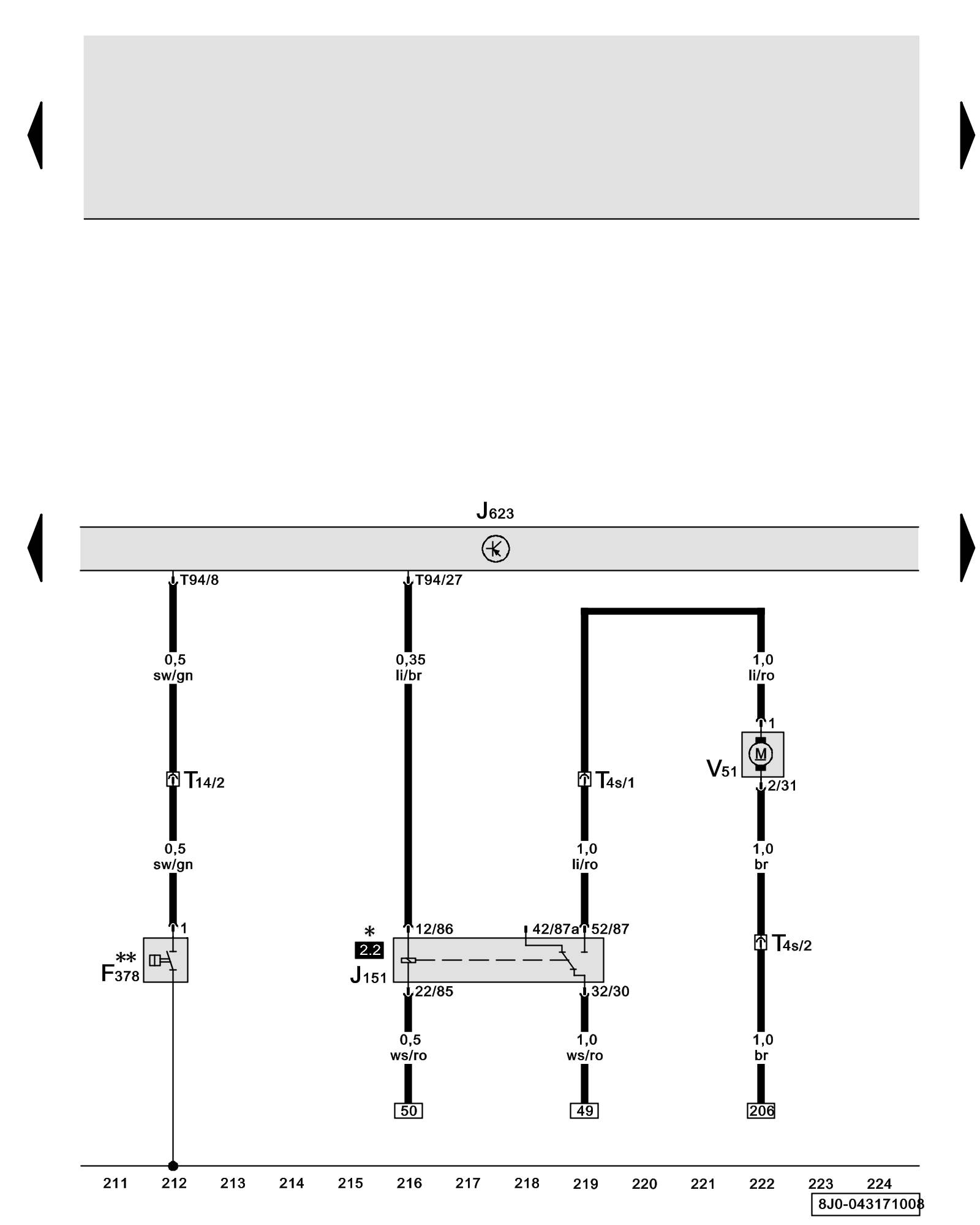

Diagram 43/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Reduced Oil Pressure Switch, Coolant Circulation Pump Relay, After-Run Coolant Pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F378 - Reduced Oil Pressure Switch Engine Management System

J151 - Coolant Circulation Pump Relay Relay carrier in electronics box engine compartment

J623 - Engine Control Module (ECM) Component Locations

T4s - 4-Pin Connector, black, in engine compartment, front left

T14 - 14-Pin Connector, black, in left front engine compartment

T94 - 94-Pin Connector, on engine control module (ECM)

V51 - After-Run Coolant Pump Locations

* - Relay and fuse carrier in electronics box engine compartment

** - Not for USA

Previous Diagram 43/16 (Tracks 197-210)

Next Diagram 43/18 (Tracks 225-238)
