Diagram 43/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

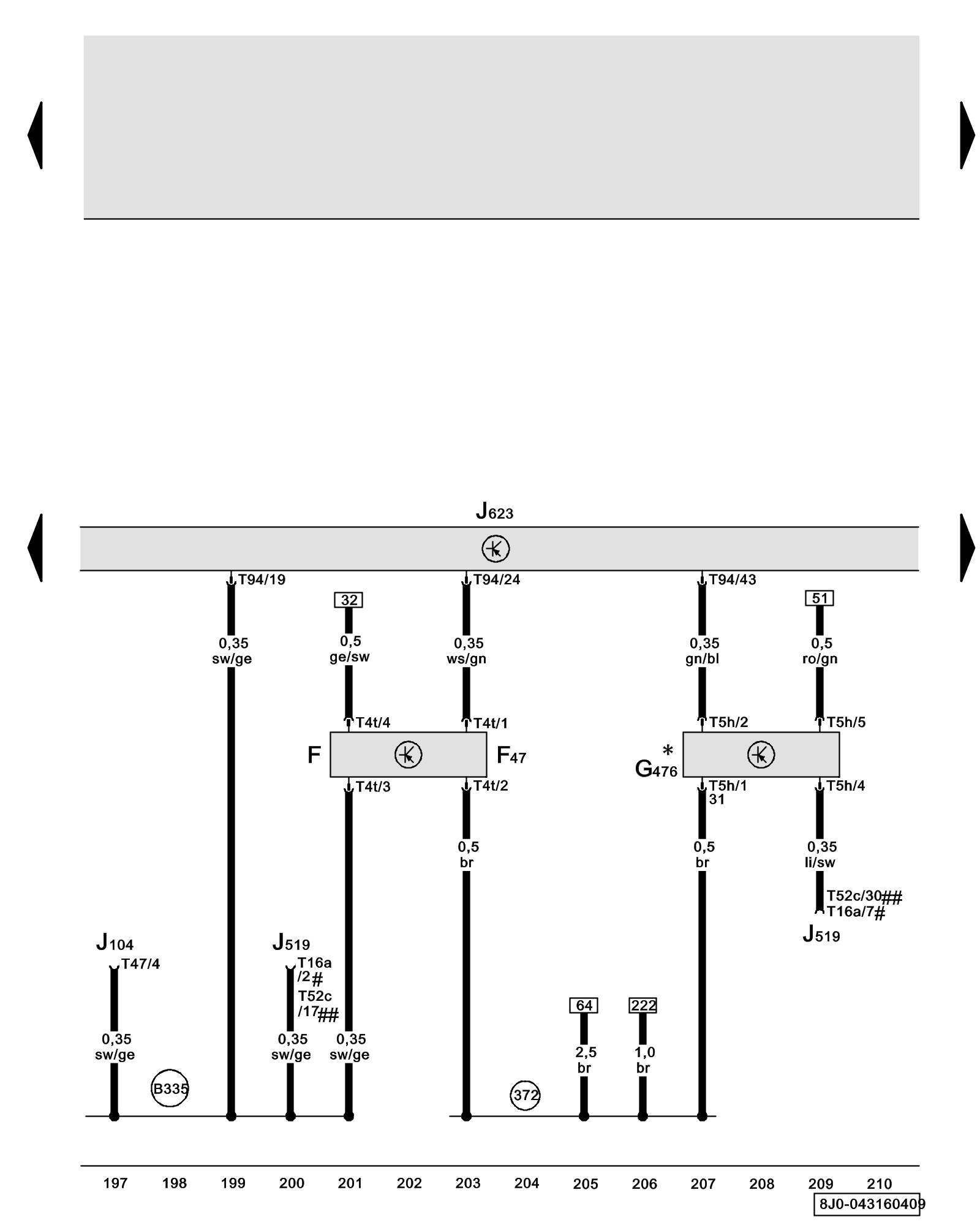

Engine Control Module (ECM), Brake Light Switch, Clutch Position Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Locations

F47 - Brake Pedal Switch Locations

G476 - Clutch Position Sensor Locations

J104 - ABS Control Module Component Locations

J519 - Vehicle Electrical System Control Module Component Locations

J623 - Engine Control Module (ECM) Component Locations

T4t - 4-Pin Connector, black, on brake light switch

T5h - 5-Pin Connector, black, on clutch position sensor

T16a - 16-Pin Connector, black (Connector E), on vehicle electrical system control module

T47 - 47-Pin Connector, on ABS control module

T52c - 52-Pin Connector, brown, on vehicle electrical system control module

T94 - 94-Pin Connector, on engine control module (ECM)

(372) - Ground Connection 7 (in main wiring harness)

(B335) - Connection 1 (54) (in main wiring harness)

* - Models with manual transmission

# - Through May 2009

## - from June 2009

Previous Diagram 43/15 (Tracks 183-196)

Next Diagram 43/17 (Tracks 211-224)
