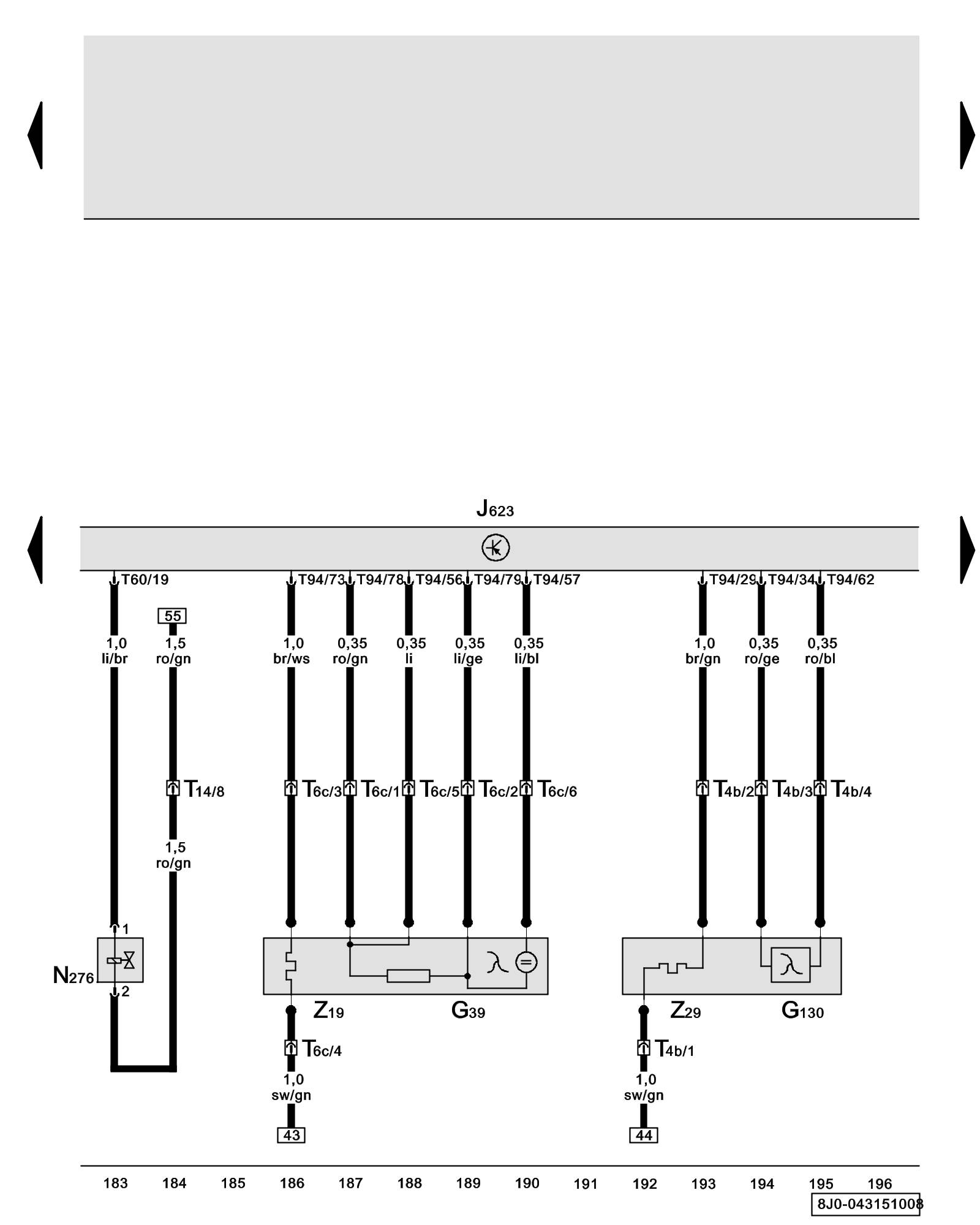

Diagram 43/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Fuel Pressure Regulator Valve, Heated Oxygen Sensor (HO2S), Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated Oxygen Sensor (HO2S) Locations

G130 - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) Locations

J623 - Engine Control Module (ECM) Component Locations

N276 - Fuel Pressure Regulator Valve Engine Management System

T4b - 4-Pin Connector, black, on oxygen sensor (O2S) behind three way catalytic converter (TWC)

T6c - 6-Pin Connector, black, on heated oxygen sensor (HO2S)

T14 - 14-Pin Connector, black, in left front engine compartment

T60 - 60-Pin Connector, on engine control module (ECM)

T94 - 94-Pin Connector, on engine control module (ECM)

Z19 - Oxygen Sensor (O2S) Heater

Z29 - Oxygen Sensor (O2S) Heater 1 (behind Three Way Catalytic Converter (TWC)
