Diagram 43/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

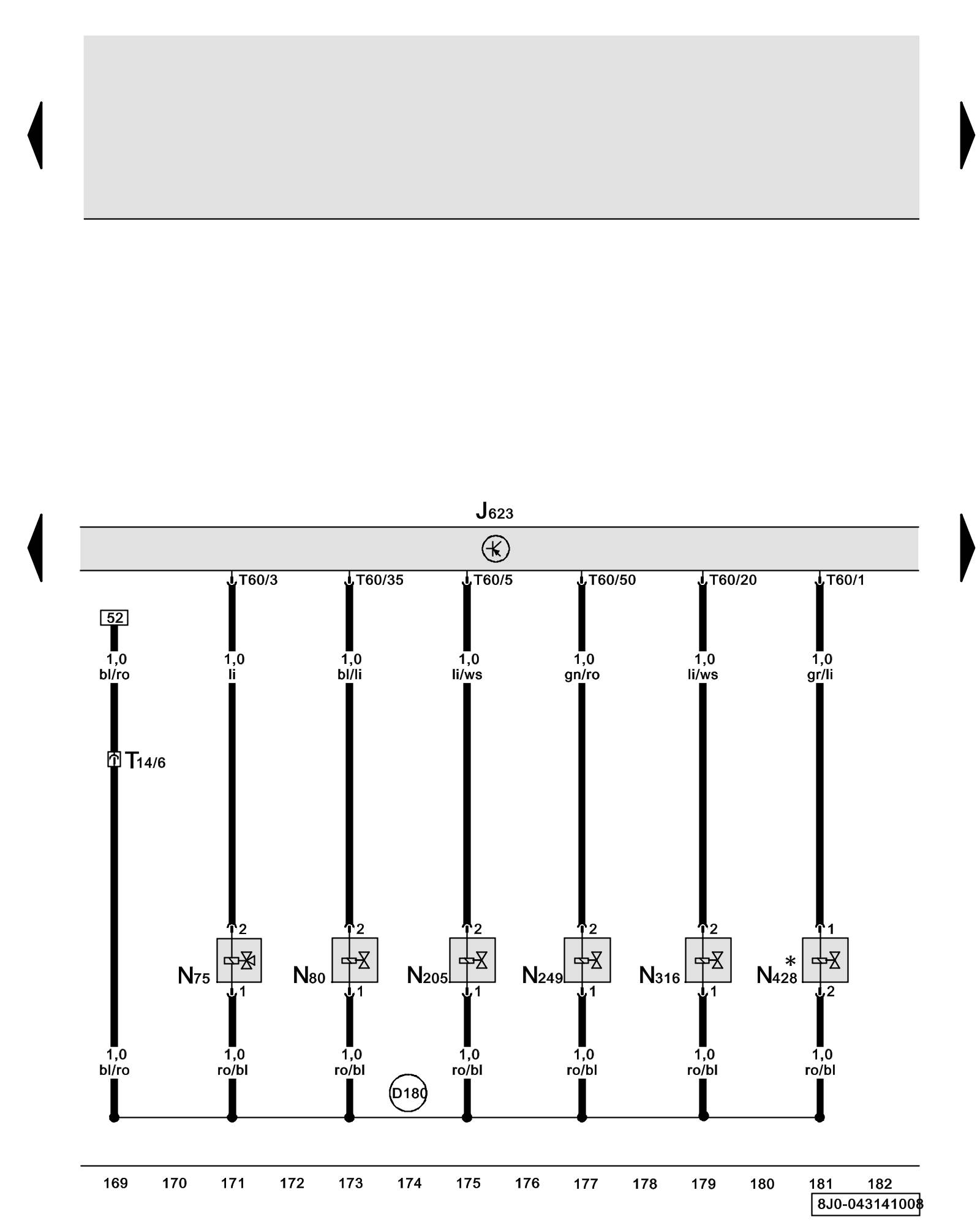

J623 - Engine Control Module (ECM) Component Locations

N75 - Wastegate Bypass Regulator Valve Engine Management System

N80 - Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 Engine Management System

N205 - Camshaft Adjustment Valve 1 Engine Management System

N249 - Turbocharger Recirculating Valve Engine Management System

N316 - Intake Manifold Runner Control (IMRC) Valve Engine Management System

N428 - Oil Pressure Regulation Valve Engine Management System

T14 - 14-Pin Connector, black, in left front engine compartment

T60 - 60-Pin Connector, on engine control module (ECM)

(D180) - Connection (87a) (in engine compartment wiring harness)

* - Not for USA

Previous Diagram 43/13 (Tracks 155-168)

Next Diagram 43/15 (Tracks 183-196)
