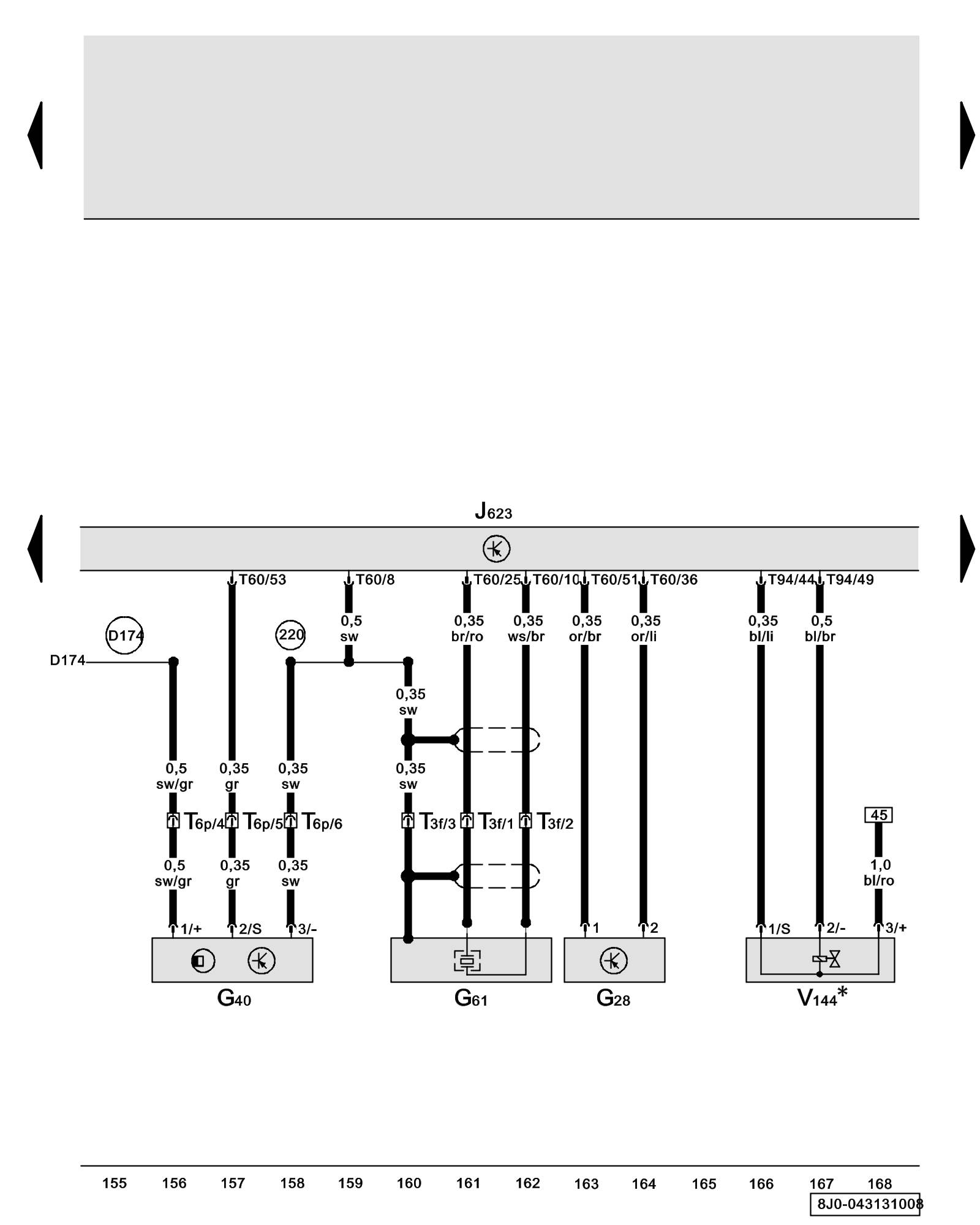

Diagram 43/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Camshaft Position (CMP) Sensor, Engine Speed (RPM) Sensor, Knock Sensor (KS)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine Speed (RPM) Sensor Engine Management System

G40 - Camshaft Position (CMP) Sensor Engine Management System

G61 - Knock Sensor (KS) 1 Engine Management System

J623 - Engine Control Module (ECM) Component Locations

T3f - 3-Pin Connector, green, on knock sensor 1

T6p - 6-Pin Connector, black, on engine, front

T60 - 60-Pin Connector, on engine control module (ECM)

T94 - 94-Pin Connector, on engine control module (ECM)

V144 - Leak Detection Pump (LDP) Locations

(220) - Sensor Ground Connection (in engine wiring harness)

(D174) - Connection 2 (5V) (in engine pre-wiring wiring harness)

* - Models with leak detection pump (LDP)
