Diagram 43/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

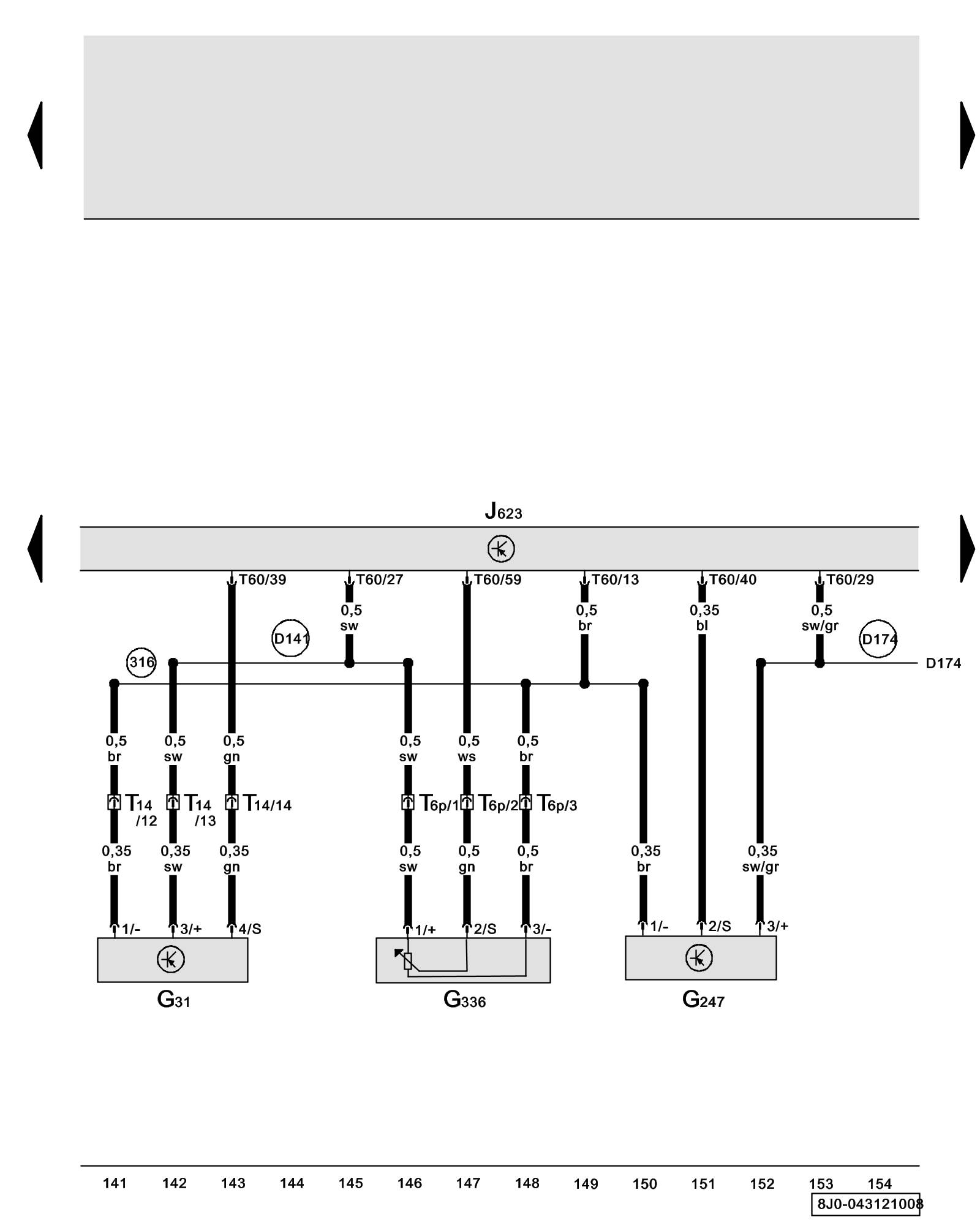

Engine Control Module (ECM), Charge Air Pressure Sensor, Intake Air Temperature (IAT) Sensor, Intake Manifold Runner Position Sensor, Fuel Pressure Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge Air Pressure Sensor Engine Management System

G247 - Fuel Pressure Sensor Engine Management System

G336 - Intake Manifold Runner Position Sensor Engine Management System

J623 - Engine Control Module (ECM) Component Locations

T6p - 6-Pin Connector, black, on engine, front

T14 - 14-Pin Connector, black, in left front engine compartment

T60 - 60-Pin Connector, on engine control module (ECM)

(316) - Sensor Ground Connection 2 (in engine wiring harness)

(D141) - Connection (5V) (in engine pre-wiring wiring harness)

(D174) - Connection 2 (5V) (in engine pre-wiring wiring harness)
