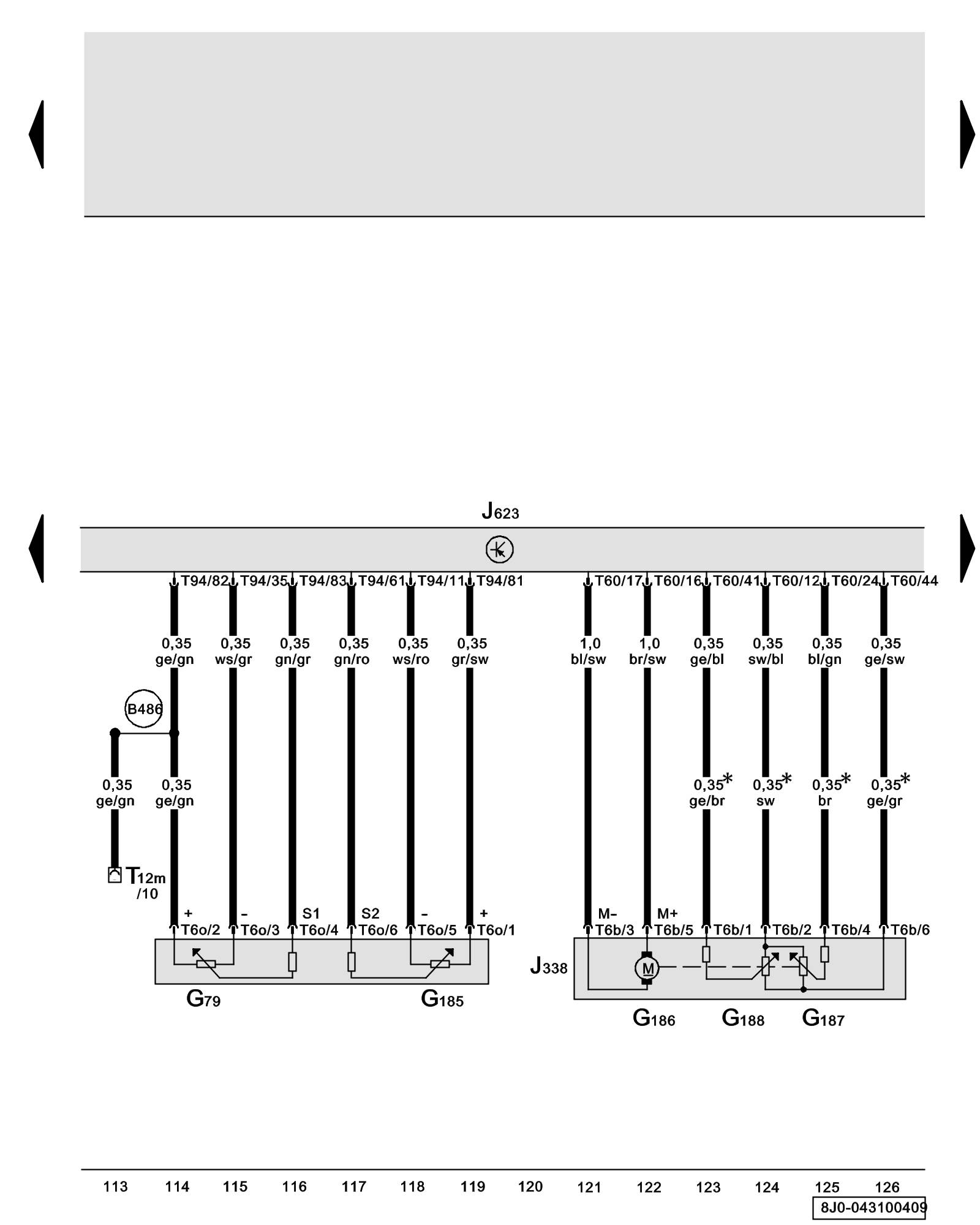

Diagram 43/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Throttle Valve Control Module, Accelerator Pedal Position Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G79 - Throttle Position (TP) Sensor Locations

G185 - Accelerator Pedal Position Sensor 2 Locations

G186 - Throttle Drive (for Electronic Power Control (EPC)

G187 - Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)

G188 - Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)

J338 - Throttle Valve Control Module Engine Management System

J623 - Engine Control Module (ECM) Component Locations

T6b - 6-Pin Connector, black, on throttle valve control module

T6o - 6-Pin Connector, black, on throttle position (TP) sensor

T12m - 12-Pin Connector, brown, in rear right luggage compartment

T60 - 60-Pin Connector, on engine control module (ECM)

T94 - 94-Pin Connector, on engine control module (ECM)

(B486) - Connection 22 (in main wiring harness)

* - Phased-in modification
