Version 2







Bracket Tensioning Strap

Removing

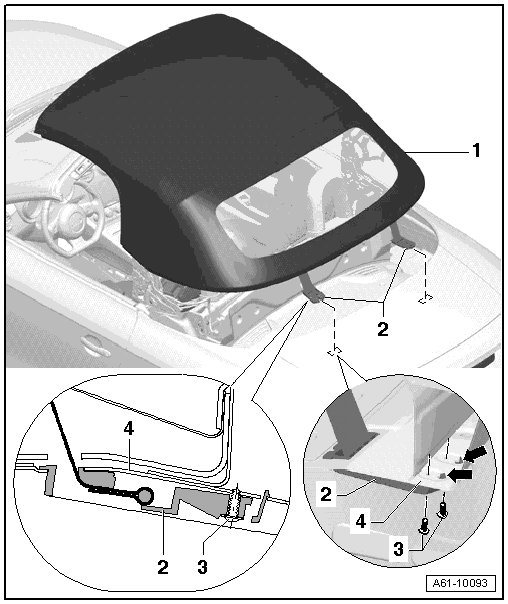

1 Convertible top

2 Bracket tensioning strap

• Remove bolts - 3 - and pull tensioning strap through into convertible top compartment.

3 Bolt

• 2 Nm

4 Convertible top compartment
