Windshield Overview

Windshield Overview

• Calibrate the camera if the windshield was replaced on a vehicle with lane assist.






1 Windshield

• Removing and installing, refer to => [ Windshield ] Windshield.

• Align the window glass on the left and right sides, dimension b when installing

2 Right A-pillar Trim

• Press into clamping strip only after window adhesive curing time has elapsed.

3 A-pillar

4 Clip

5 Roof Frame Trim

6 Spacer

7 Left A-pillar Trim

8 Clip

9 Window Adhesive

• Note varying spacing dimensions to window edge.

• Dimension a = 7 mm

• Dimension c = 7 mm

• Dimension d = 23 mm

• Observe curing times. Refer to => [ Minimum Curing Times ] Minimum Curing Times.

10 Spacer

11 Plenum Chamber Cover

• Install the plenum chamber cover into the retaining strip only after the window adhesive curing time is complete.

• Remove the protective piping before installing the plenum chamber cover on a new window glass.=> [ Removing Protective Piping ].

Windshield Height Adjustment






- Align the window glass - 1 - from side to side and adjust it to dimension - a - = 43.5 mm to the hole in the roof frame - 2 -.

- Secure the window glass from sliding out using an adjusting wedge on the bottom edge of the glass.

- Install the rail for the seal and secure the window glass with adhesive tape.

Removing Protective Piping

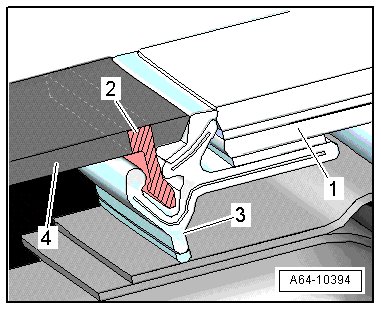

- For a new window, protective piping - 2 - must be pull out of retaining strip - 3 - of windshield - 1 - before assembling plenum chamber cover - 4 -.
