Window Regulator

Window Regulator

Removing






- Window regulator motor, removing, refer to => [ Window Regulator Motor ] Window Regulator Motor.

- Remove the door window, refer to => [ Door Window ] Door Window.

- Remove the bass speaker.

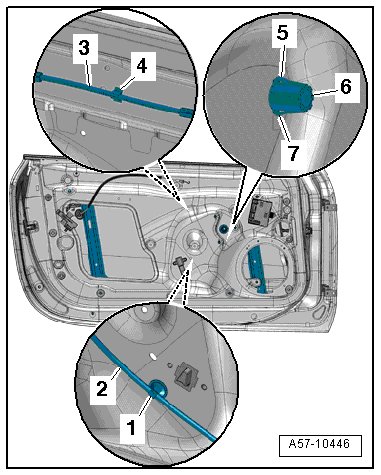

- Release the clips - 5 - and - 7 - on the window regulator threaded pins - 6 - using an 11 mm socket by sliding the socking onto the threaded pins.

- Pull the cable - 2 - out of the cable guide - 1 -.

- Unclip the cable - 3 - upward from the cable guide - 4 -.

- Remove the sealing plugs - 1, 2 and 4 -.






- Remove the nuts - 3 - on the window regulator cable guide.

- Remove the nuts - 5 - while counterholding at the door window adjustment threaded pin - 6 -.

- Guide the window regulator back out of the opening.

Installation






• Tightening specifications, refer to => [ Window Regulator Motor and Window Regulator Overview ] Window Regulator Motor and Window Regulator Overview.

Installation is reverse of removal, but note the following:

• Make sure the clip - 5 - and - 7 - on the window regulator threaded pins - 6 - are locked inside the inner door panel.

• The cables - 2 - and - 3 - must be clipped to the inside of the cable guides - 1 - and - 4 -.

- Install the bass speaker.

- Install the door window. Refer to => [ Door Window ] Door Window.

- Install the window regulator motor. Refer to => [ Window Regulator Motor ] Window Regulator Motor.

- Adjust the door window: side adjustment and height adjustment. Refer to => [ Door Window, Adjusting ] Door Window, Adjusting.
