S-tronic(R) - Replacement Transmission Changes

34 - S4, S5, S-tronic, gearbox change model year 2010

34 11 05

2027303/1

August 4, 2011

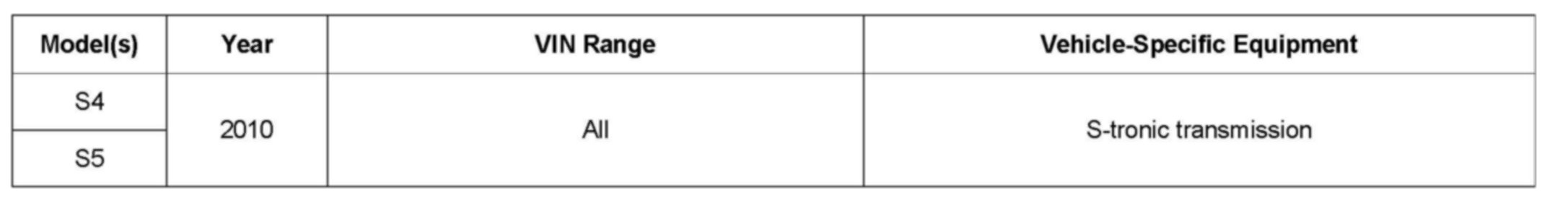

Affected Vehicles

Condition
Differences in the replacement gearbox noted when replacing complete gearbox.

Technical Background

Technical changes on replacement gearboxes for vehicles of model year 2010.

Old gearbox version

^ Gearbox housing with oil guide (Figure 1, 1 without filter).

^ Pressure filter externally fitted in the ATF pipe system (Figure 1, 2).

New replacement gearbox

^ Gearbox housing with oil guide including pressure filter (oil filter module) (Figure 2, 3).

^ ATF pipes without pressure filter.

Production Solution

Not applicable.

Service

A gearbox replacement on vehicles of model year 2010 is only possible with new ATF pipes (see parts catalog).

The use of the old ATF pipes including pressure filter with a gearbox with oil filter module (filter needs changing) can affect the driving characteristics and lead to gearbox damage.

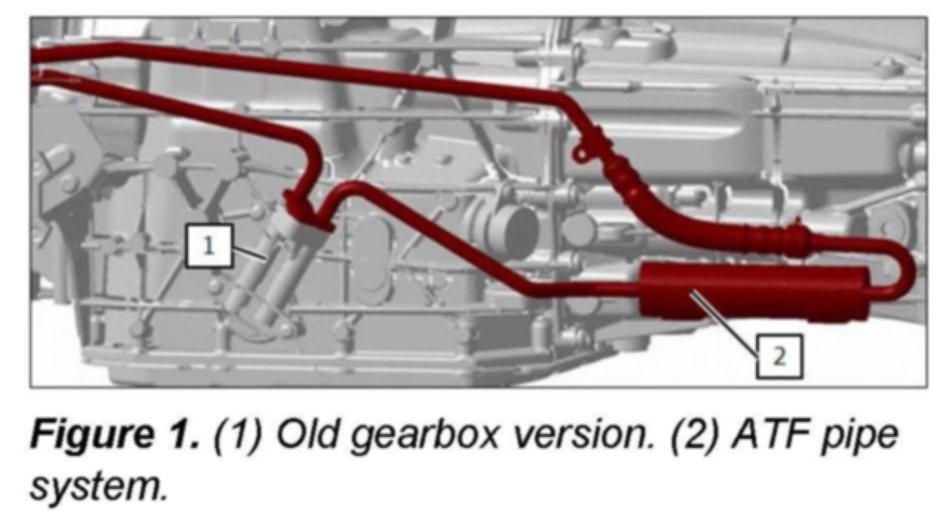

Old gearbox version of model year 2010 - oil guide with ATF pipe including pressure filter.

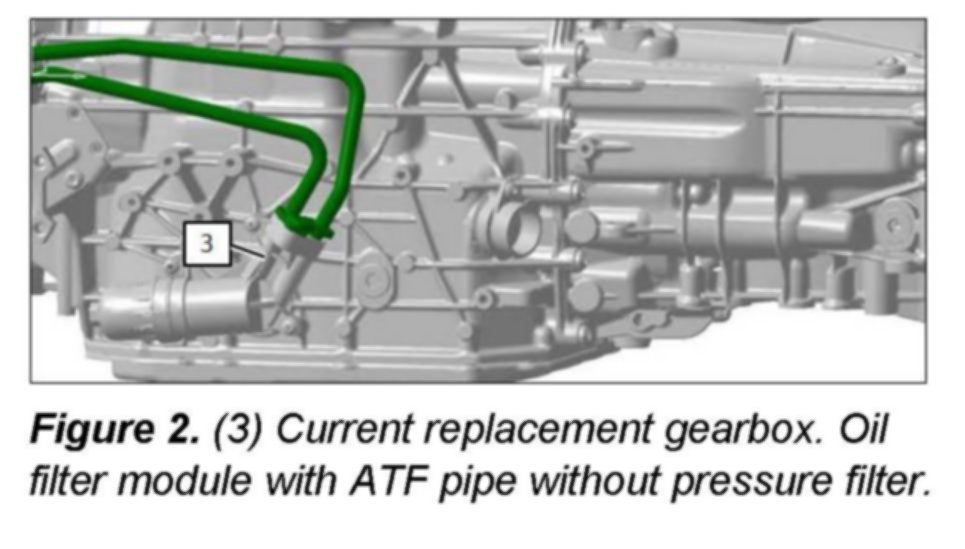

Current replacement gearbox - oil filter module with ATF pipe without pressure filter.

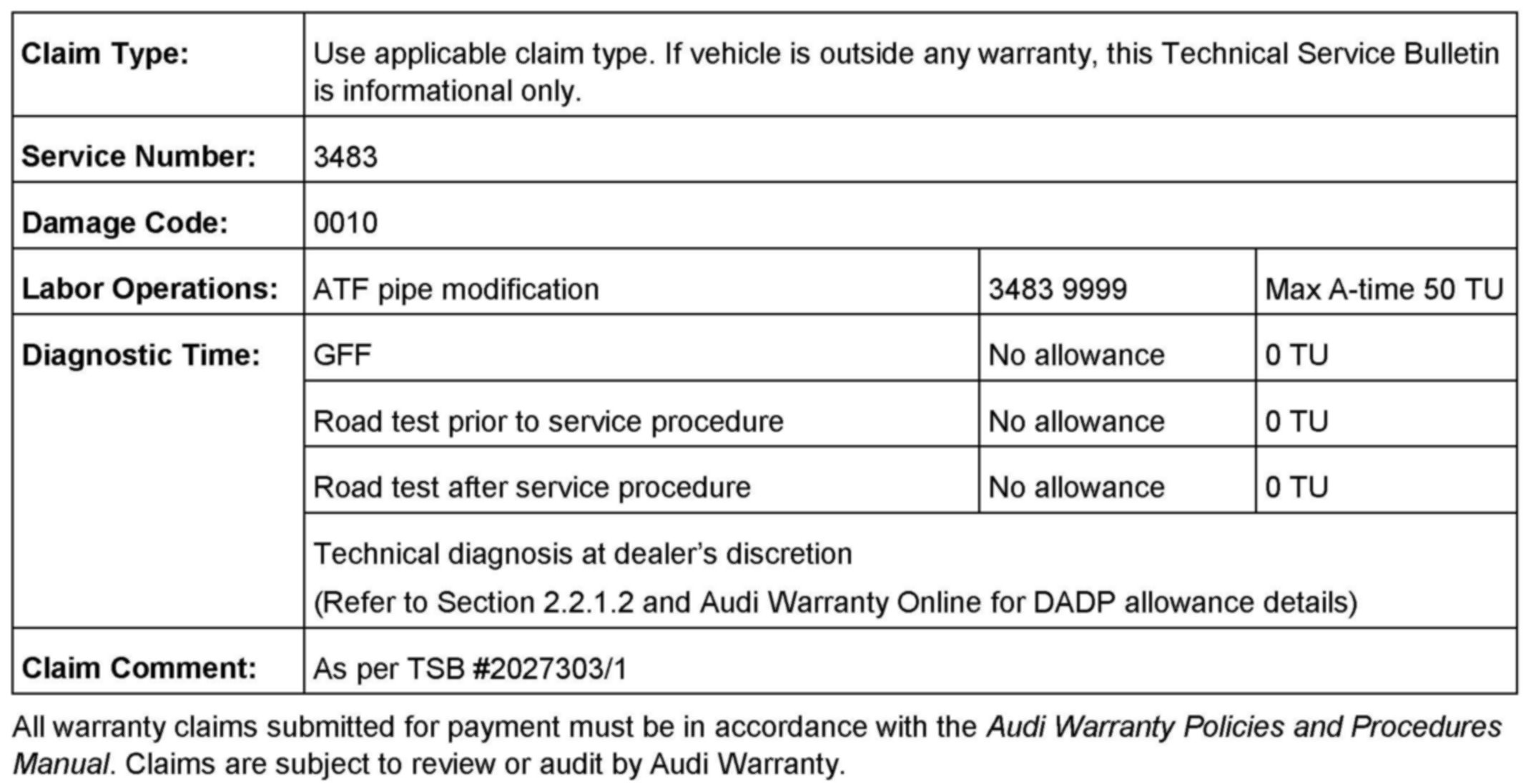

Warranty

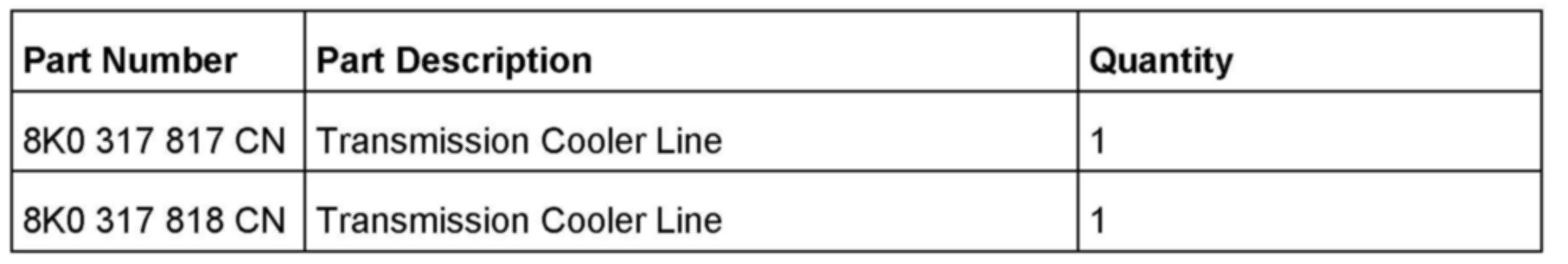

Required Parts and Tools

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
