Powertrain Overview

Powertrain Overview

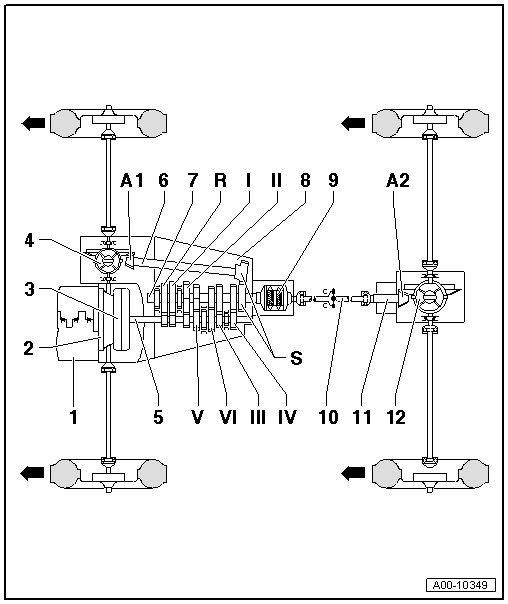

• Illustrated with 6-speed manual transmission 0B2 AWD.

• - Arrows - point in direction of travel.





1 - Engine

2 - Drive Plate

• With a needle bearing for the input shaft mounting

3 - Clutch Module

• Consists of a pressure plate, clutch plate and the dual mass flywheel with transfer plate

4 - Front Differential

5 - Input Shaft (main shaft)

6 - Front Pinion with Side Shaft

7 - Output Shaft

8 - Manual Transmission

9 - Center Differential

10 - Driveshaft

11 - Rear Pinion

12 - Rear Differential

I - 1st Gear

II - 2nd Gear

III - 3rd Gear

IV - 4th Gear

V - 5th Gear

VI - 6th Gear

R - Reverse Gear

S - Intermediate Drive Gear

A1 - Front Final Drive

A2 - Rear Final Drive
