Rear Final Drive Identification

Rear Final Drive Identification

Rear Final Drive 0BC is allocated to the following transmissions:

• 6-speed manual transmission 0B2 AWD

• 6-speed manual transmission 0B4 AWD

• 7-speed S-tronic transmission 0B5 AWD

• Automatic transmission 0B6 AWD

• 8-speed automatic transmission 0BK AWD

Rear Final Drive Allocation

• Audi A4 from MY 08 => [ Transmission Allocations, Ratios and Capacities ] Transmission Allocations, Ratios and Capacities

• Audi A5 Coupe from MY 08 => [ Transmission Allocations, Ratios and Capacities ] Transmission Allocations, Ratios and Capacities

• Audi A5 Cabriolet from MY 09 => [ Transmission Allocations, Ratios and Capacities ] Transmission Allocations, Ratios and Capacities

• Audi Q5 from MY 08 => [ Transmission Allocations, Ratios and Capacities ] Transmission Allocations, Ratios and Capacities

• Audi A6 from MY 11 => [ Transmission Allocations, Ratios and Capacities ] Transmission Allocations, Ratios and Capacities

• Audi A7 from MY 11 => [ Transmission Allocations, Ratios and Capacities ] Transmission Allocations, Ratios and Capacities

• Audi A8 from MY 10 => [ Transmission Allocations, Ratios and Capacities ] Transmission Allocations, Ratios and Capacities

Classification on the Rear Final Drive

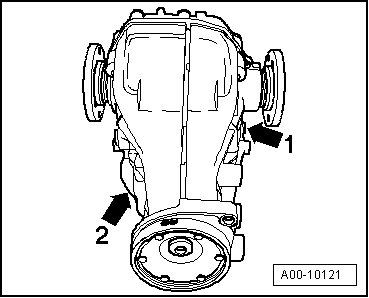

Final drive 0BC - arrow 1 - and 0AR






Code and build date - arrow 2 -

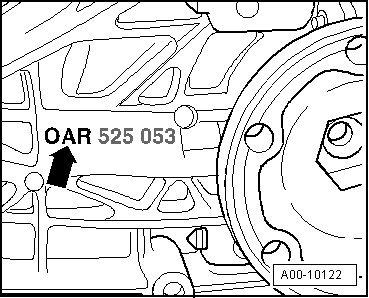

Final Drive 0BC - arrow - and 0AR






• "0AR" is always on the rear final drive housing. The changes to the housing are what differentiate the "0BC" final drive from the "0AR" final drive.

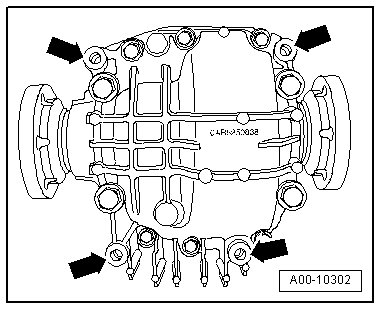

• The locations of the threaded holes - arrows - for attaching the crossmember to the rear final drive are also different.






• The "0BC" final drive has 4 threaded holes - arrows - in its housing, used for attaching the crossmember. In addition to this, there is an additional threaded hole under the flange/driveshaft used for attaching the final drive to the subframe.

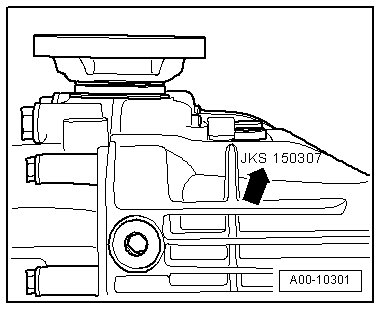

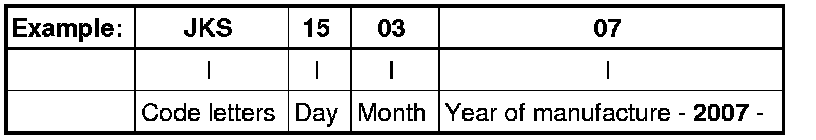

Rear Final Drive Code and Date of Manufacture











The other data is not needed.

• When replacing a rear final drive, always pay close attention to the code, the PR number and the engine code. This is the only way to make sure the allocation is correct.
