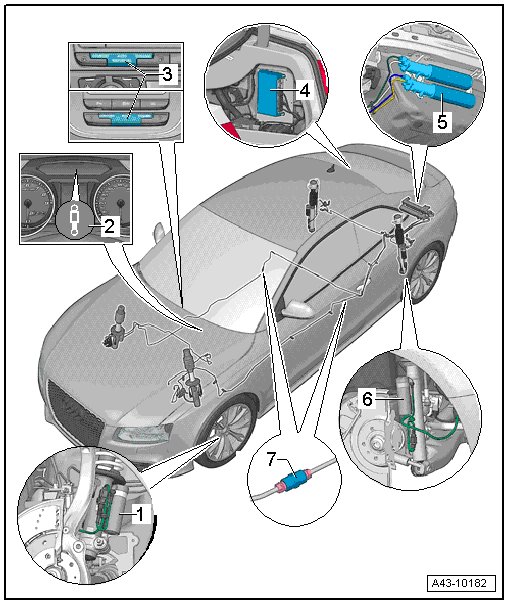

Dynamic Ride Control (DRC) Installation Locations

Dynamic Ride Control (DRC) Installation Locations

Dynamic Ride Control (DRC)






1 Front Suspension Strut with Extract/Fill Valve

• Refer to => [ Front Suspension Strut ] Central Valves Assembly Overview.

• Additional component with an integrated electric motor - vehicle with variable damping.

2 Indicator Lamp

• Vehicle with variable damping.

3 Audi Drive Select Controls

• Vehicle with variable damping.

4 Electronic Damping Control Module (J250)

• Vehicle with variable damping.

• Removing and installing, refer to => [ Electronic Damping Control Module ] .

5 Central Valves

• Removing and installing, refer to => [ Central Valve ] .

6 Rear Shock Absorber with Extract/Fill Valve

• Refer to => [ Rear Shock Absorber ] Central Valves Assembly Overview.

• Additional component with an integrated electric motor - vehicle with variable damping.

7 Connection to the Right/Left Front Suspension Strut

• 14 Nm
