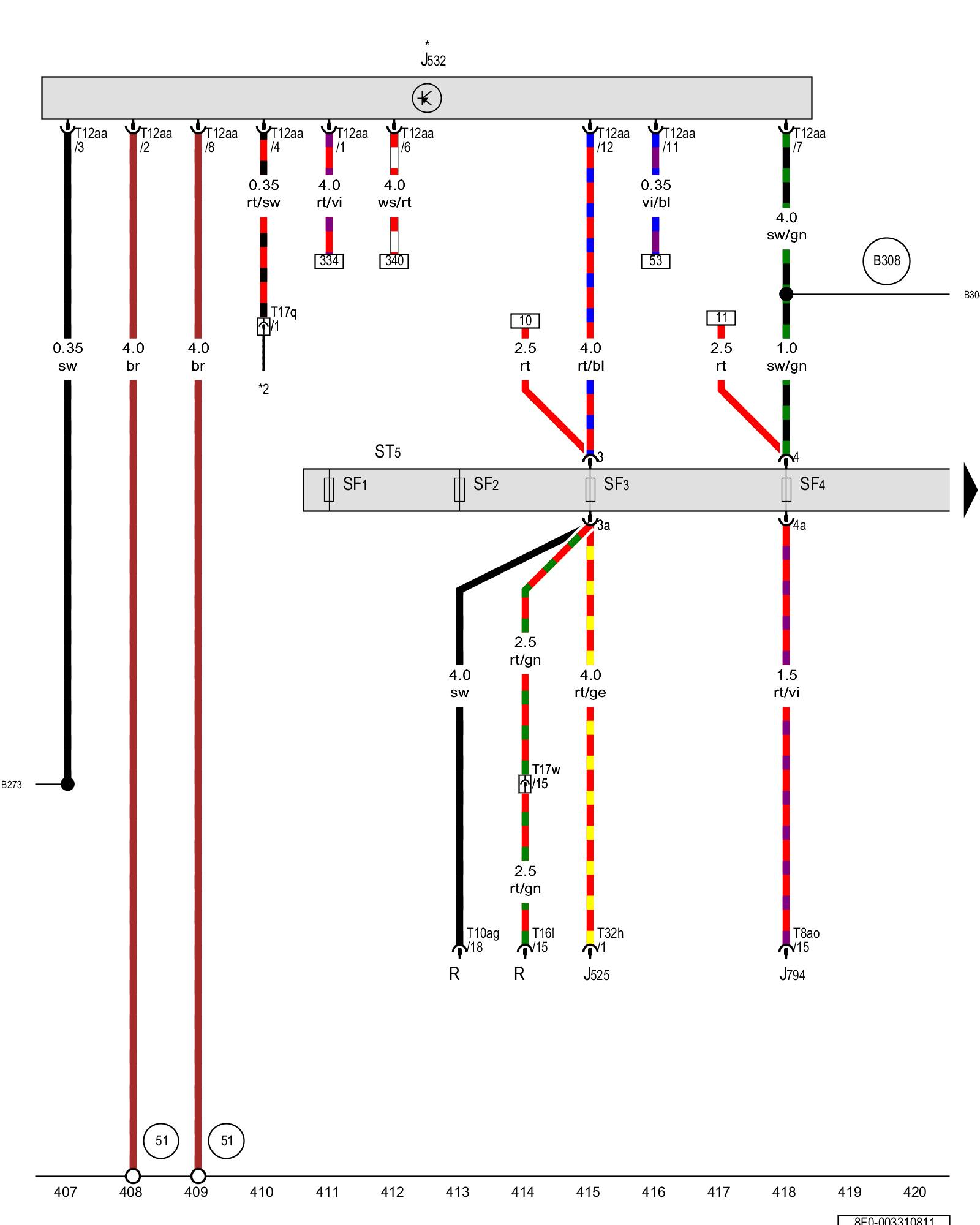

Diagram 3/31 (Tracks 407-420)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse 1 (on fuse panel F), Fuse 4 (on fuse panel F), Fuse panel 5





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Control Modules in rear part of vehicle, overview

J532 - Voltage stabilizer Control Modules in rear part of vehicle, overview

J794 - Information electronics control module 1 MMI Installation Locations

R - Radio Overview of Control Modules in interior of vehicle

SF1 - Fuse 1 (on fuse panel F) Overview Of Fuses

SF2 - Fuse 2 (on fuse panel F) Overview Of Fuses

SF3 - Fuse 3 (on fuse panel F) Overview Of Fuses

SF4 - Fuse 4 (on fuse panel F) Overview Of Fuses

ST5 - Fuse panel 5

T8ao - 8-pin connector Locations

T10ag - 10-pin connector

T12aa - 12-pin connector Voltage Stabilizer -J532-

T16l - 16-pin connector Radio -R- (with integrated CD Changer -R41- /DVD Changer -R161- )

T17q - 17-pin connector, in the E-box Overview Of Connector Stations

T17w - 17-pin connector, in the connector station, right A-pillar Overview Of Connector Stations

T32h - 32-pin connector

(51) - Ground connection in luggage compartment, right Locations

(B273) - Positive connection (15) (in main wiring harness)

(B308) - Positive connection 12 (30) (in main wiring harness)

* - Only for vehicles with Stop/Start system

*2 - Refer to applicable engine wiring diagram

Previous Diagram 3/30 (Tracks 393-406)

Next Diagram 3/32 (Tracks 421-434)
