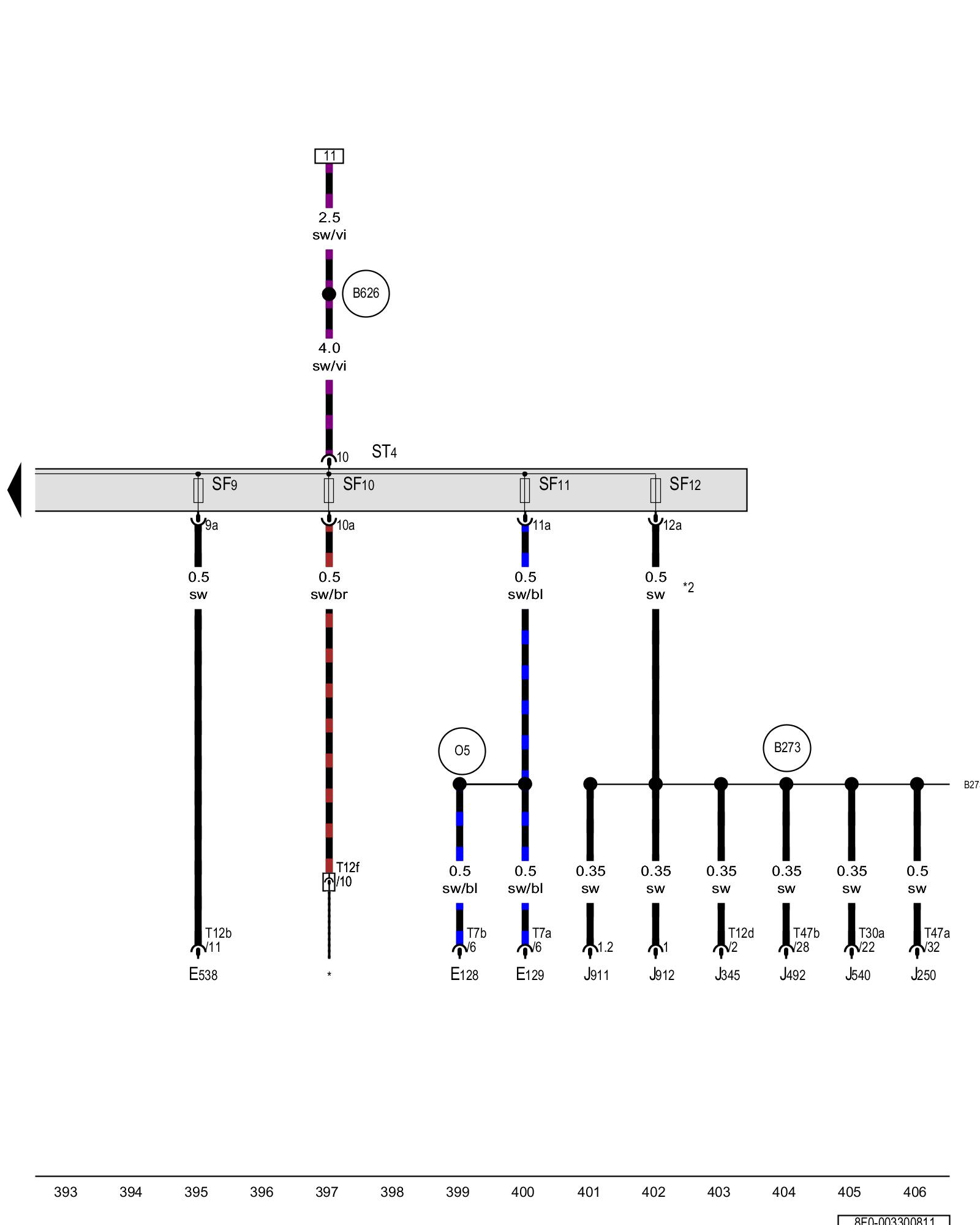

Diagram 3/30 (Tracks 393-406)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel 4, Fuse 9 (on fuse panel F), Fuse 12 (on fuse panel F)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E128 - Left rear heated seat regulating switch

E129 - Right rear heated seat regulating switch

E538 - Electromechanical parking brake button

J250 - Electronic damping control module Control Modules in rear part of vehicle, overview

J345 - Towing recognition control module Control Modules in rear part of vehicle, overview

J492 - All wheel drive control module Control Modules in rear part of vehicle, overview

J540 - Electromechanical parking brake control module Control Modules in rear part of vehicle, overview

J911 - Left head area heater relay Overview Of Relay

J912 - Right head area heater relay Overview Of Relay

ST4 - Fuse panel 4

SF9 - Fuse 9 (on fuse panel F) Overview Of Fuses

SF10 - Fuse 10 (on fuse panel F) Overview Of Fuses

SF11 - Fuse 11 (on fuse panel F) Overview Of Fuses

SF12 - Fuse 12 (on fuse panel F) Overview Of Fuses

T7a - 7-pin connector

T7b - 7-pin connector

T12b - 12-pin connector

T12d - 12-pin connector Component Locations

T12f - 12-pin connector, black

T30a - 30-pin connector

T47a - 47-pin connector Connector Locations

T47b - 47-pin connector Locations

(B273) - Positive connection (15) (in main wiring harness)

(B626) - Positive connection 2 (15) (in main wiring harness)

(O5) - Connection 1 (15a) (in heated seats wiring harness)

* - Refer to applicable lane assist wiring diagram

*2 - Diameter depends on equipment
