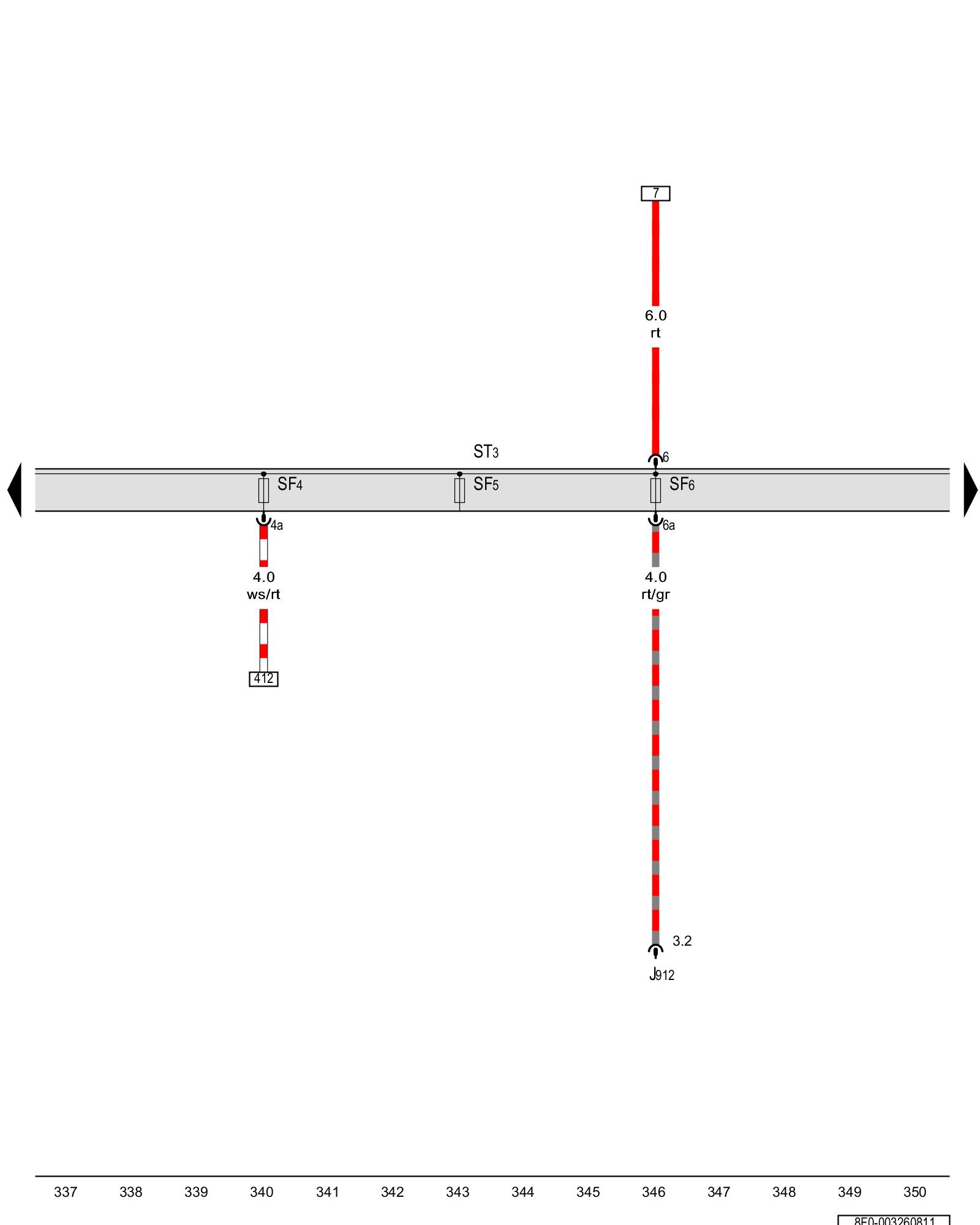

Diagram 3/26 (Tracks 337-350)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel 3, Fuse 4 (on fuse panel F), Fuse 6 (on fuse panel F)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J912 - Right head area heater relay Overview Of Relay

ST3 - Fuse panel 3

SF4 - Fuse 4 (on fuse panel F) Overview Of Fuses

SF5 - Fuse 5 (on fuse panel F) Overview Of Fuses

SF6 - Fuse 6 (on fuse panel F) Overview Of Fuses
