Structure-Borne Sound Control Module (J869) and Structure-Borne Sound Actuator (R214)

Structure-Borne Sound Control Module (J869) and Structure-Borne Sound Actuator (R214)

Removing






- Remove the seal from the plenum chamber bulkhead.

- Remove the plenum chamber cover.

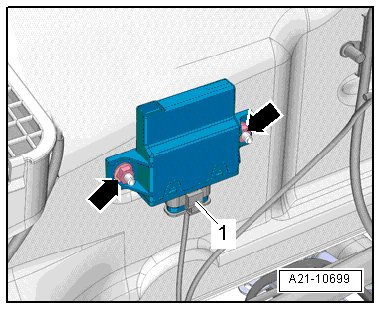

Structure-Borne Sound Control Module






- Disconnect the connector - 1 -.

- Remove the nuts - arrows - and structure-borne sound control module.

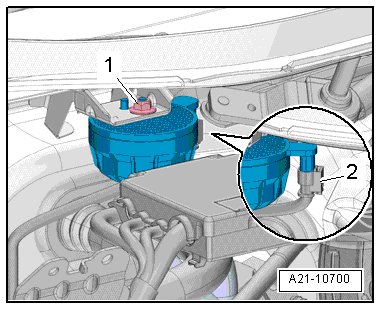

Structure-Borne Sound Actuator






- Remove the nuts - 1 -.

- Remove the structure-borne sound actuator and disconnect the connector - 2 -.

Installing

Install in reverse order of removal. Note the following:

Tightening specifications:

• => [ - Tightening Specification ] Supercharger Overview

• => [ - Tightening Specification ] Supercharger Overview

- Install the plenum chamber cover.
