Multiport Fuel Injection - Fastener Tightening Specifications

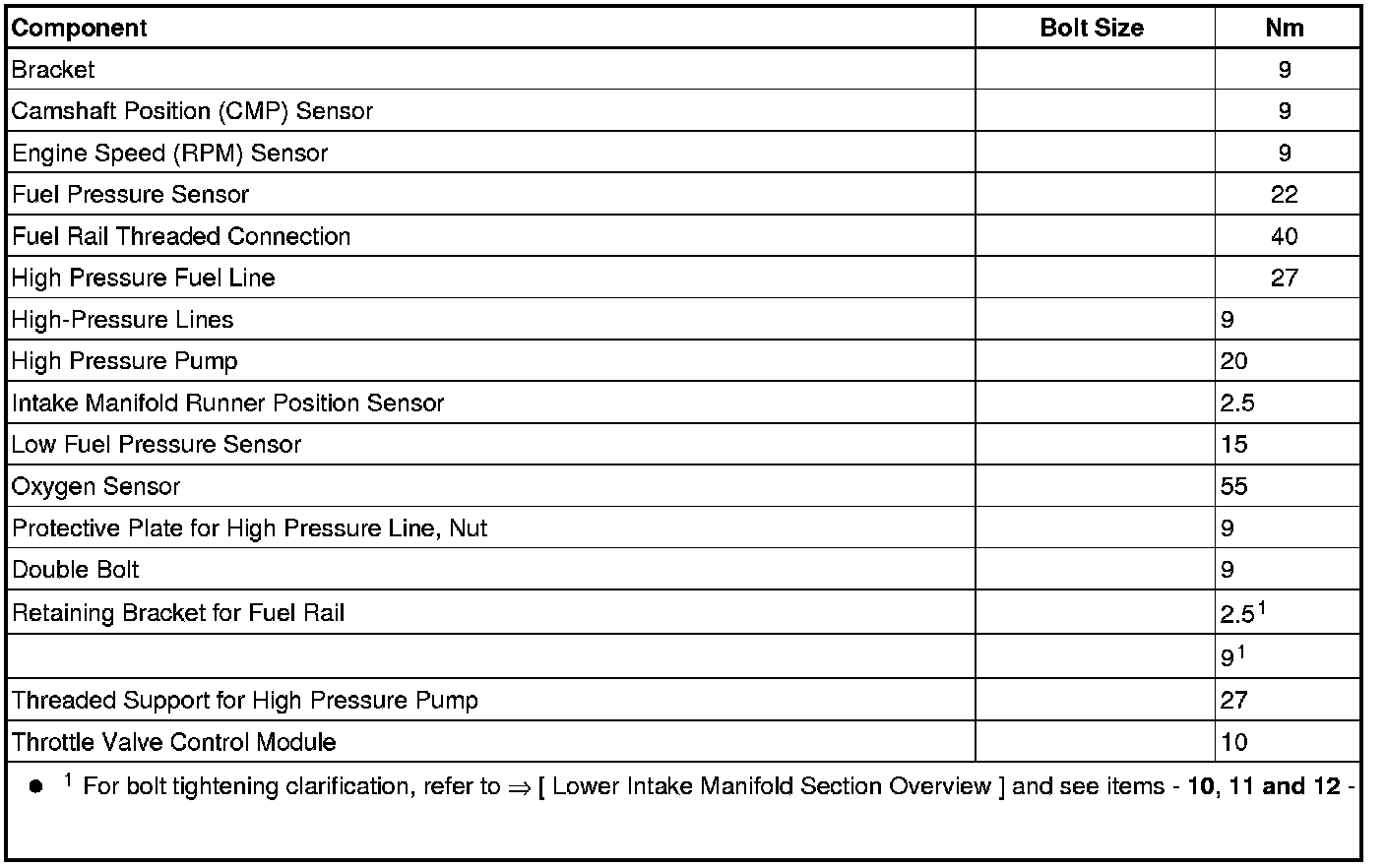

Fastener Tightening Specifications






Tightening Specification, Intake Manifold Lower Section






- Tighten the bolts and nuts - arrows - diagonally on the intake manifold lower section and in steps.

• 10 Nm
