6-Cylinder Engine

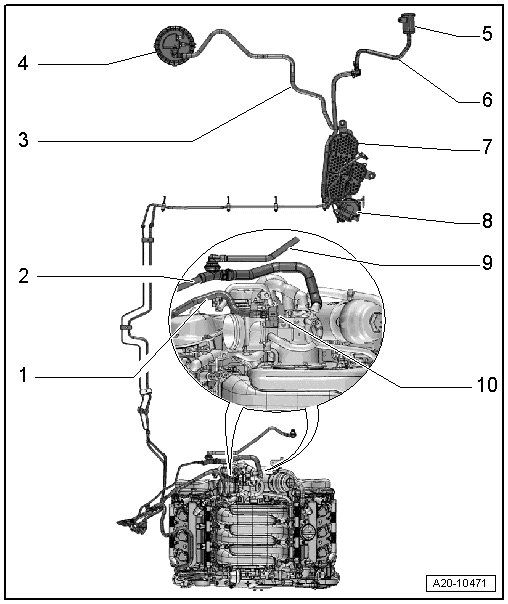

EVAP Canister and Leak Detection System, Hose Diagram






1 EVAP Canister Purge Regulator Valve 1 (N80)

2 Vent Line

• From the fuel tank locking flange to the EVAP canister

• Clipped into brackets under the vehicle underbody

3 Fuel Tank Locking Flange

4 Air Filter Housing

• For leak detection pump (V144)

5 Connecting Line

• From the leak detection pump to the air filter

• Clipped into brackets under the vehicle underbody

6 EVAP Canister

• Installed location: under the luggage compartment floor

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair

7 Leak Detection Pump (V144)

• Installed location: on the EVAP canister under the bottom of the luggage compartment

• Check in Guided Fault Finding [ext-diag>^^[ext-diag]^^^^[/ext-diag]

• Removing and installing, refer to => [ Leak Detection Pump ]

8 Vent Line

• From EVAP canister to EVAP canister purge regulator valve 1

• Clipped into brackets under the vehicle underbody

9 Vacuum Line

• From engine to leak detection pump

• Clipped into brackets under the vehicle underbody

10 To the Brake Booster
