Horns (H2)/(H7)

Horns (H2)/(H7)

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing






- Switch off the ignition and remove the ignition key.

- Remove the air intake grille.

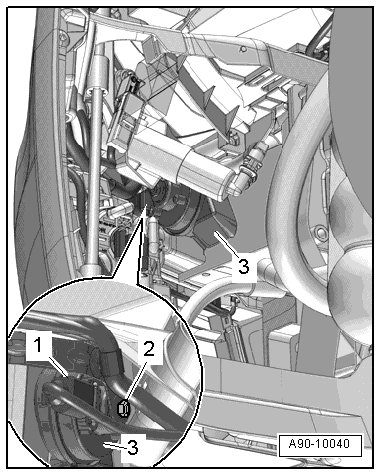

- Remove the nut - 2 -.

- Remove the signal horn - 3 - from the bracket.

- Disconnect the electrical connector - 1 -.

• If the horn cannot be removed depending on the vehicle equipment level, then remove the front wheel housing liner. Remove the front wheel housing liner..

Installing

• Tightening specifications, refer to => [ Horn Overview ] Horn Overview.

Install in reverse order of removal, observing the following:

- Install the air intake grille.
