Oil Level, Checking With Oil Level Display Tester

Engine Oil Level, Checking with Oil Level Display

Note:
- Minimum engine oil temperature 140°F (60 °C).
- Vehicle must be in level position.
- After stopping engine, wait a few minutes to allow oil to flow back into oil pan.

Special tools and workshop equipment required



- Oil level display tester -T40178-

Marking the field on the oil level display tester:

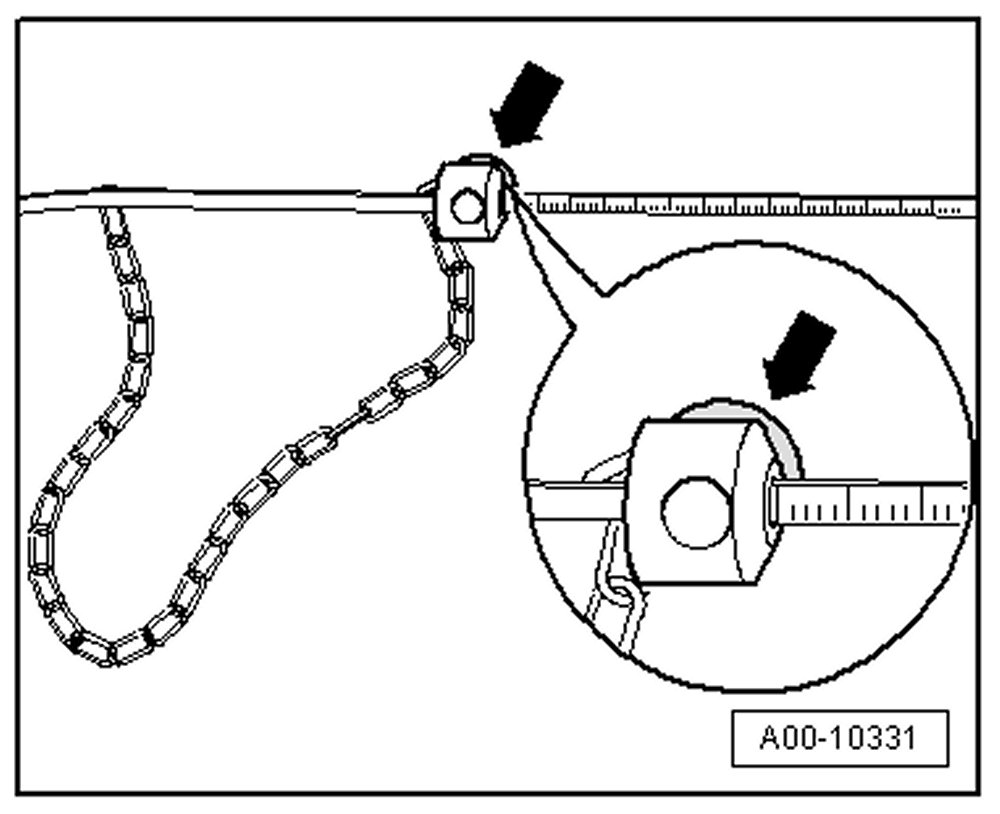

- Adjust the value on the oil level display test on the upper scale -arrow- by opening the knurled screw and moving the adjusting ring.

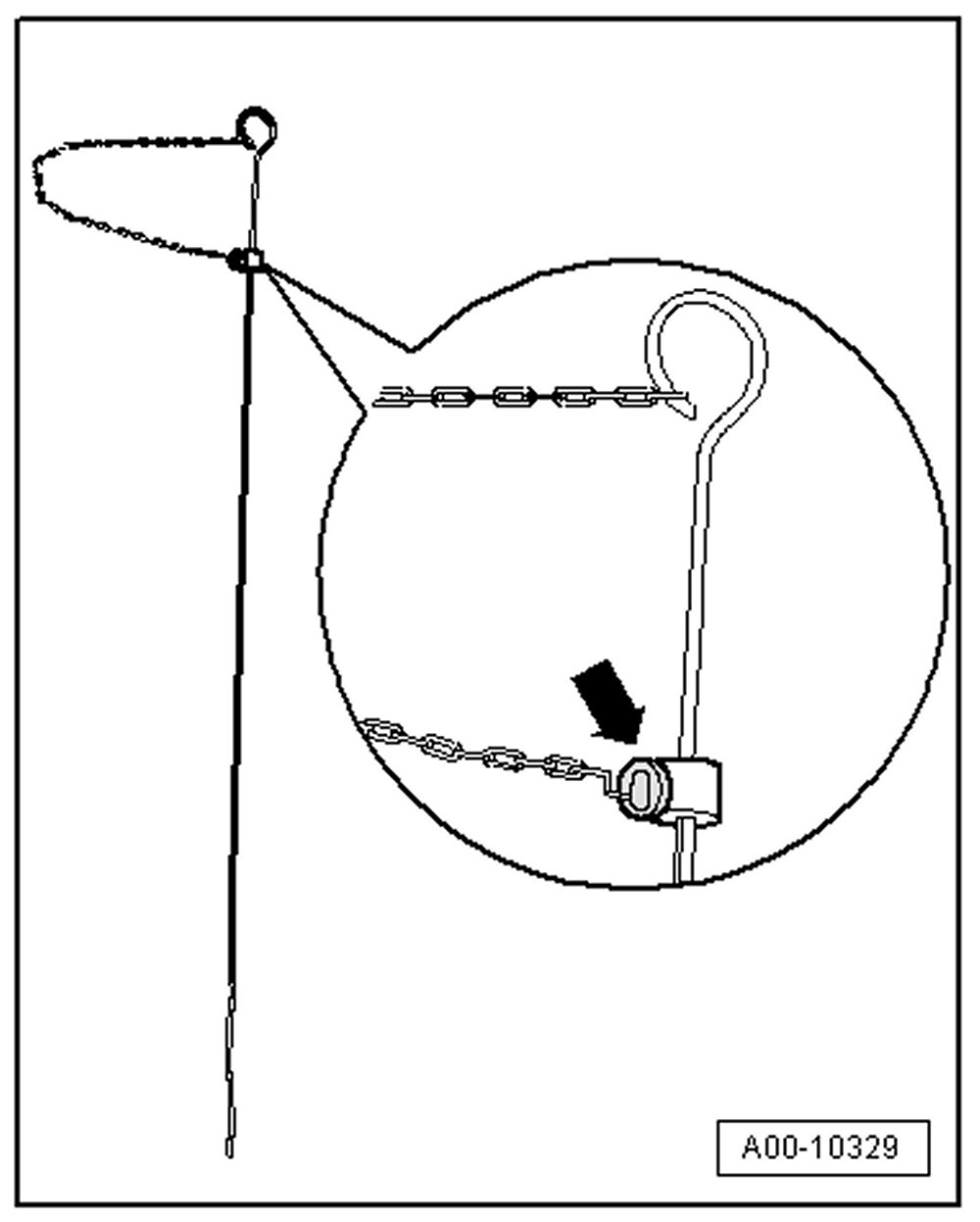

- Insert the oil level display tester all the way (adjusting ring) into the tube for the oil dipstick, then pull it out and read the oil level.

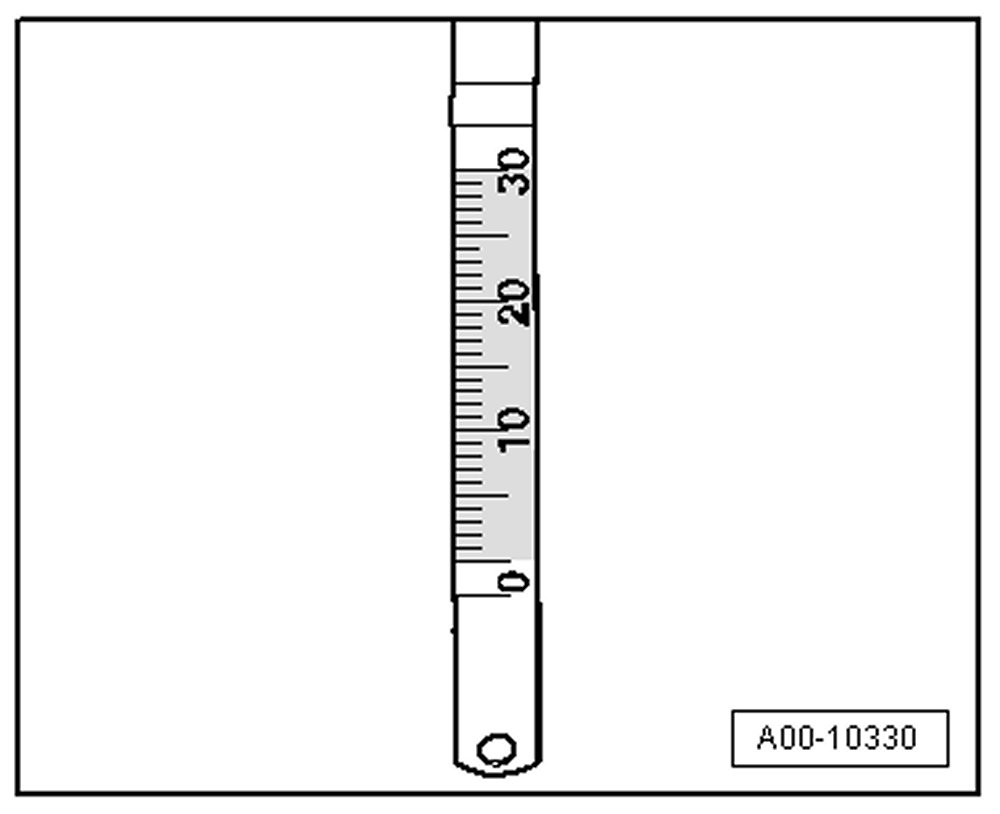

- Read the value on the lower scale.

2.0 TFSI
Adjusting value on the upper adjusting ring 39
Minimum oil level on the lower scale 0
Maximum oil level on the lower scale 24

3.2 FSI
Adjusting value on the upper adjusting ring 132
Minimum oil level on the lower scale 0
Maximum oil level on the lower scale 13

4.2 FSI
Adjusting value on the upper adjusting ring 175
Minimum oil level on the lower scale 0
Maximum oil level on the lower scale 23
