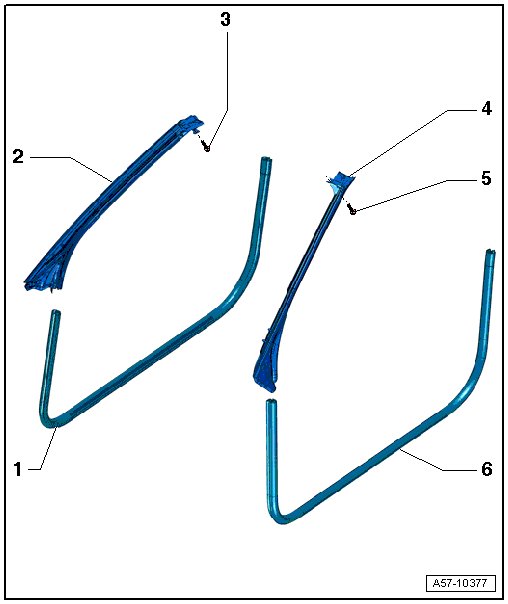

Inner Door Seal and A-Pillar Door Seal Assembly Overview

Inner Door Seal and A-Pillar Door Seal Assembly Overview






1 Right Inner Door Seal

• Removing and Installing, refer to => [ Inner Door Seal ] Inner Door Seal

2 Right A-pillar Door Seal

• Removing and Installing, refer to => [ A-Pillar Door Seal ] A-Pillar Door Seal

3 Bolt

• 2 Nm.

4 Left A-pillar Door Seal

• Removing and Installing, refer to => [ A-Pillar Door Seal ] A-Pillar Door Seal

5 Bolt

• 2 Nm.

6 Left Inner Door Seal

• Removing and Installing, refer to => [ Inner Door Seal ] Inner Door Seal
