Left and Right Cabin Heater Fan

Left and Right Cabin Heater Fan

Removing





- Remove the backrest cover. Refer to => [ Backrest Cover ] Backrest Cover.

- Remove the backrest cover and cushion:

• Manual or power Sport with as well as Comfort seat. Refer to => [ Backrest Cover and Cushion ] Backrest Cover and Cushion.

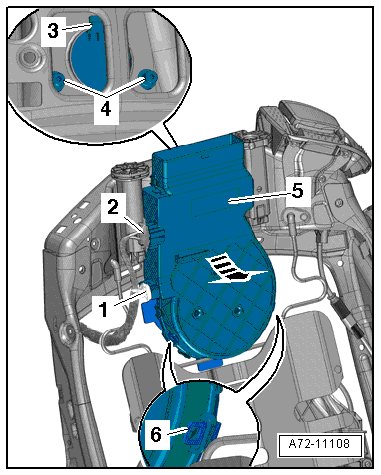

- Press the release and disconnect the connectors - 1 - and - 2 -.

- Disengage the tab on the retaining strap - 6 - and remove the cabin heater blower from its bracket.

- Remove the cabin heater blower - 5 - downward - arrow - and disengage the strap - 3 - on the backrest frame.

Installation

Installation is reverse of removal, but note the following:

- Make sure the strap - 3 - and the centering pin - 4 - on the cabin heater blower - 5 - fit into the holes in the backrest frame.

- Press on the cabin heater blower until it audibly engages into the bracket.
