Cabin Heater Blower Bracket







Cabin Heater Blower Bracket

Removing





- Remove the cabin heater blower. Refer to => [ Left and Right Cabin Heater Fan ] Left and Right Cabin Heater Fan.

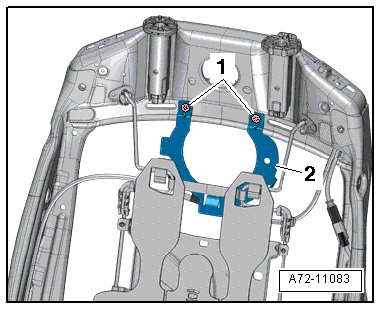

- Remove the bolts - 1 - and then remove the bracket - 2 -.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Cabin Heater Assembly Overview ] Cabin Heater Assembly Overview.
