Backrest Release Bracket

Backrest Release Bracket

Special tools, testers and auxiliary items required

• Special pop rivet pliers (V.A.G 1753A)

• Drill

• Protective EYEWEAR

Removing





- Remove the backrest release support plate. Refer to => [ Backrest Release Support Plate ] Backrest Release Support Plate.


Eye injury risk.

• Wear protective EYEWEAR!

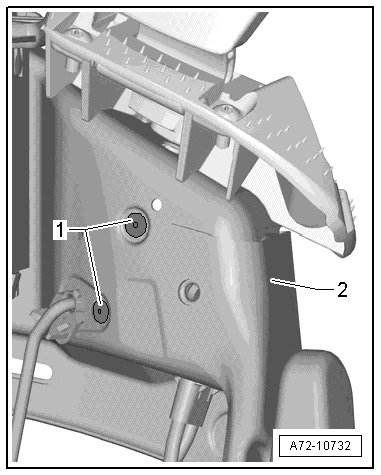

- Remove the rivets - 1 - on the backrest frame - 2 -.

- Remove the entry assistance cover. Refer to => [ Entry Assistance Cover ] Entry Assistance Cover.





- Unclip the end of the release cable - 2 -.

- Press the end of the release cable out of the bracket - 1 - in the - direction of the arrow -.

- Remove the bracket from the backrest frame.

Installation


• Follow the safety precautions for pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

Installation is reverse of removal, but note the following:

• Ensure that electrical connections are pushed in as far as stop and engage with a click.


Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Disconnect the battery ground wire with the ignition switched on.

• If Airbag Malfunction Indicator Lamp (MIL) (K75) indicates a fault after installation, DTC memory must be checked, deleted and checked again .
