Backrest Cover

Backrest Cover

• Removal and installation can be done with seat installed.

• Removal and installation is described on a standard front seat. It is similar on the other seat versions.

• The illustration shows a backrest cover without a storage net.

• The storage net cannot be removed from the backrest cover and can only be replaced together with the backrest cover.

Removing






Danger of being injured by burrs on the backrest cover.

Wear protective gloves.

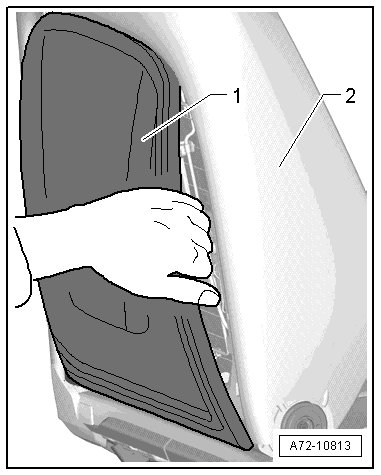

- Reach behind the backrest cover - 1 - and pull it to the right and off the seat backrest - 2 -.

• If this is difficult, the pry lever (80 - 200).

- Repeat the process on the other side.

- Loosen all the hooks.

- Pull the backrest cover further and roll it up until the upper hooks come out of the backrest frame.

- Remove the backrest cover upward.

Installation





Installation is reverse of removal, but note the following:

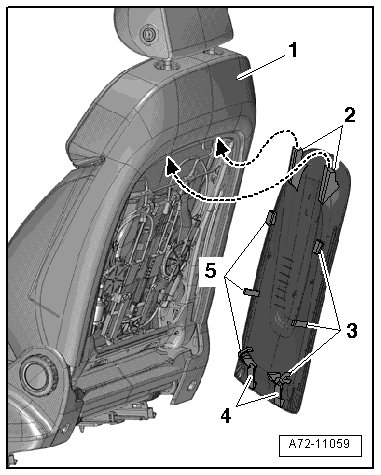

- Push the upper hook - 2 - under the upper backrest crossmember - 1 -.

- Tilt the backrest cover down and engage the side retaining tabs - 3 - and - 5 - and the lower hooks - 4 -.

- Make sure the tabs on the side fit correctly into the backrest frame and the lower hooks are bent correctly over the backrest frame.

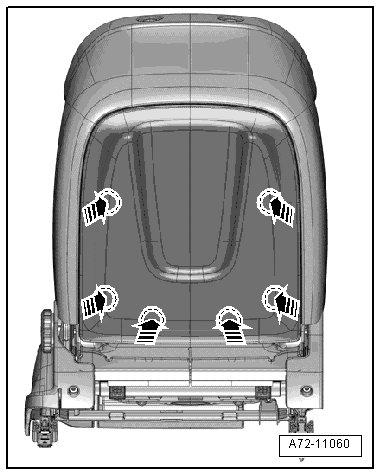

- Press the backrest cover firmly into the areas marked with circles - arrows - in the direction of the backrest.





- Make sure the backrest cover is correctly locked.

• It must not be possible to move the backrest cover at the bottom.
