Seat Cushion Extension Trim

Seat Cushion Extension Trim

Removing


• Follow the safety precautions for pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Remove front seat:

• Manual Sport seat, refer to => [ Manual Standard Front Seats ] Manual Standard Front Seats.

• Power Sport seat, Comfort seat and Super Sport seat, refer to => [ Power Standard Front Seats ] Power Standard Front Seats.

- Attach front seat to Fixture For Seat Repair (VAS 6136), refer to => [ Front Seat, Installing on Fixture for Seat Repair VAS 6136 ] Front Seat, Installing on Fixture for Seat Repair VAS 6136.

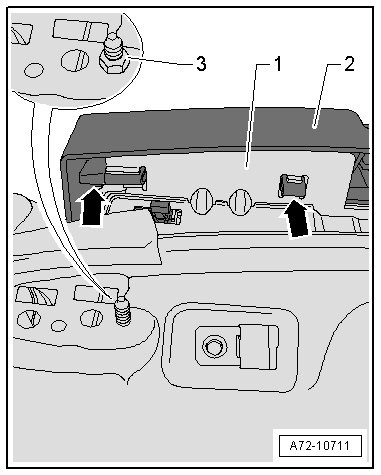

- Pry the clips - arrows - (quantity: 4) out at the trim - 2 -.





- Remove the trim - 2 - from the seat cushion extension base plate - 1 -.

• Ignore - 3 -.

Installation


• Follow the safety precautions for pyrotechnic components. Refer to => [ Restraint System Components ] Description and Operation.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

Installation is reverse of removal, but note the following:

• Ensure that electrical connections are pushed in as far as stop and engage with a click.


Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

- Disconnect the battery ground wire with the ignition switched on.

• If Airbag Malfunction Indicator Lamp (MIL) (K75) indicates a fault after installation, DTC memory must be checked, deleted and checked again.
