Entry Assist Backrest Release Assembly Overview
Entry Assist Backrest Release Assembly Overview

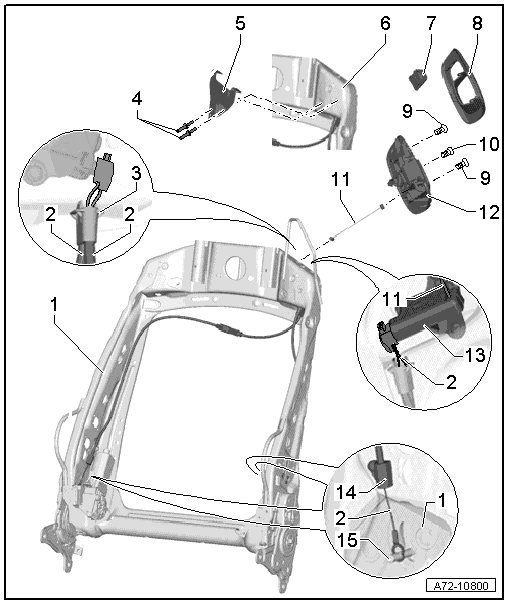

Two different versions of the backrest frame may be installed.
• Backrest frame with bracket
• Backrest frame with support plate
• Note the allocation of the handle with bracket and the entry assistance trim.
• The four-way lumbar support and seat frame are not shown in the illustration.
1 Backrest frame
• With bracket
• The bracket cannot be removed
2 Release
• For backrest release
• One piece
• Removing and Installing, refer to => [ Backrest Release Cable ] Backrest Release Cable
• Adjusting, refer to => [ Backrest Cable, Adjusting ] Backrest Cable, Adjusting
3 Mount
• For the backrest release cable
• Component of the release cable
• Clipped to the backrest frame
4 Rivet
• Quantity: 2
5 Support plate
• Riveted to the backrest frame
• Removing and Installing, refer to => [ Backrest Release Support Plate ] Backrest Release Support Plate
6 Backrest frame
• For versions with the support plate
7 Button
• With entry assist
• Removing and Installing, refer to => [ Entry Assistance Button ] Entry Assistance Button
8 Entry assist trim
• Removing and Installing, refer to => [ Entry Assistance Trim ] Entry Assistance Trim
9 Bolt
• Quantity: 2
• 3.5 Nm
10 Bolt
• 3.5 Nm
11 Connecting cable
• For backrest release
• Between the handle and bracket
• Engaged in the handle and bracket
• Removing and Installing, refer to => [ Connecting Cable ] Connecting Cable
12 Handle
• With bracket (entry assistance)
• For backrest release
• Removing and Installing, refer to => [ Entry Assistance Handle with Bracket ] Entry Assistance Handle with Bracket
13 Bracket
• For the backrest release cable
• Riveted to the backrest frame
• Removing and Installing, refer to => [ Backrest Release Bracket ] Backrest Release Bracket
14 Bracket
• For the backrest release cable
• Quantity: 2
• Component of the release cable
• riveted to the backrest frame
15 Bolts
• For backrest release
• Both sides
• Part of the backrest hinge
