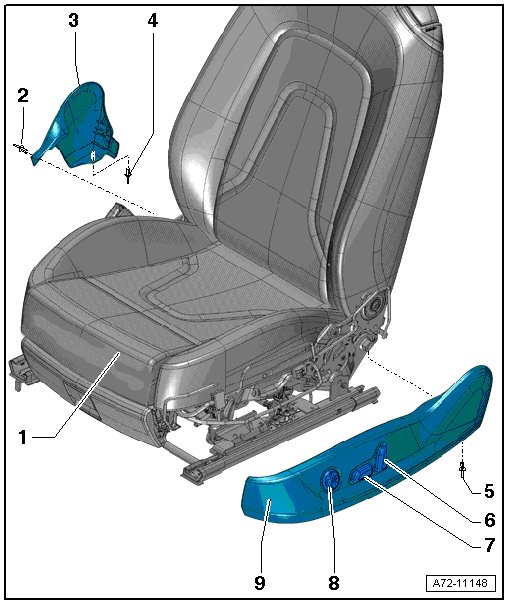

Sill and Tunnel Side Trim Assembly Overview

Sill and Tunnel Side Trim Assembly Overview






1 Front seat

2 Expanding rivet

3 Tunnel side trim

• Can only be replaced with seat removed

• Removing and Installing, refer to => [ Trim, Tunnel Side ] Trim, Tunnel Side

4 Expanding rivet

5 Expanding rivet

6 Actuator

• For the backrest and head restraint adjusters

• Assembly overview, refer to => [ Seat Adjustment Control Head Assembly Overview ] Seat Adjustment Control Head Assembly Overview

• Actuator, removing and installing, refer to => [ Backrest and Headrest Adjustment Actuator ] Backrest and Headrest Adjustment Actuator

• Control head, removing and installing, refer to => [ Seat Adjustment Control Head ] Seat Adjustment Control Head

7 Actuator

• For seat adjustment

• Assembly overview, refer to => [ Seat Adjustment Control Head Assembly Overview ] Seat Adjustment Control Head Assembly Overview

• Actuator, removing and installing, refer to => [ Seat Adjustment Actuator ] Seat Adjustment Actuator

• Control head, removing and installing, refer to => [ Seat Adjustment Control Head ] Seat Adjustment Control Head

8 Switch

• For adjusting lumbar support

• Assembly overview, refer to => [ Lumbar Support Adjustment Switch Assembly Overview ] Lumbar Support Adjustment Switch Assembly Overview

• Removing and Installing, refer to => [ Lumbar Support Adjustment Switch ] Lumbar Support Adjustment Switch

9 Sill side trim panel

• Can be replaced with seat installed

• Removing and Installing, refer to => [ Trim, Sill Side ] Trim, Sill Side
