Seat Forward/Back Adjustment Motor Assembly Overview

Seat Forward/Back Adjustment Motor Assembly Overview

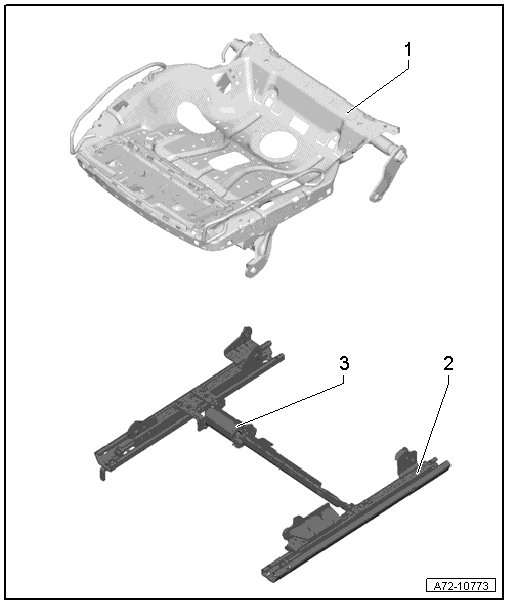

• If motor is faulty, lower seat pan frame must be replaced.

• The seat pan is shown without the upholstery and cover.





1 Seat pan upper frame

• Removing and Installing, refer to => [ Upper Seat Frame ] Upper Seat Frame

2 Seat pan lower frame

• With forward/back adjustment motor

• cannot be disassembled; available only as a complete unit

• Removing and Installing, refer to => [ Lower Seat Frame ] Lower Seat Frame

3 Seat forward/back adjustment motor

• With seat pan lower frame

• Driver side: driver seat forward/back adjustment motor (V28)

• Front passenger side: front passenger seat forward/back adjustment motor (V31)

• cannot be disassembled; available only as a complete unit

• Removing and Installing, refer to => [ Forward/Back Adjustment Motor ] Forward/Back Adjustment Motor
