Seat Angle Adjustment Motor Assembly Overview

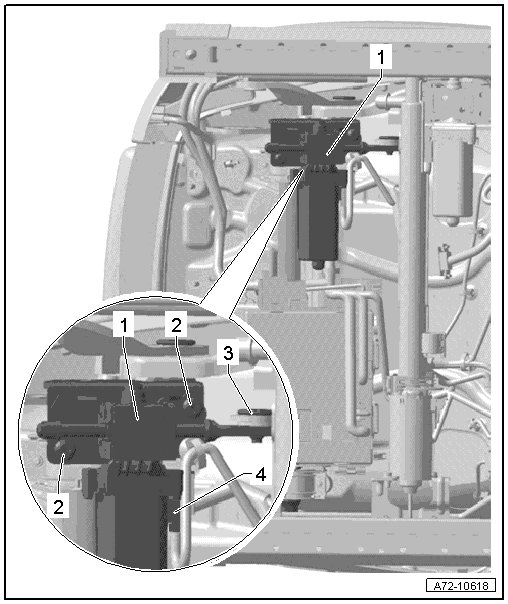

Seat Angle Adjustment Motor Assembly Overview






1 Angle adjustment motor

• Driver side: driver seat angle adjustment motor (V243)

• Front passenger side: front passenger seat angle adjustment motor (V244)

• Removing and Installing, refer to => [ Seat Angle Adjustment Motor ] Seat Angle Adjustment Motor

2 Screws

• Quantity: 2

• Self-locking

• Replace

• Threaded holes for screws must always be cleaned, for example, with thread cutter

• 10 Nm

3 Bolt

• Self-locking

• Replace

• Threaded screw holes must always be cleaned (for example, with thread cutter)

• 20 Nm

4 Electrical connection
