Seat Forward/Back Adjuster Assembly Overview

Seat Forward/Back Adjuster Assembly Overview

• The lower section of the seat with the seat forward/back adjuster cannot be separated from the upper section (seat pan) on manual standard front seats.

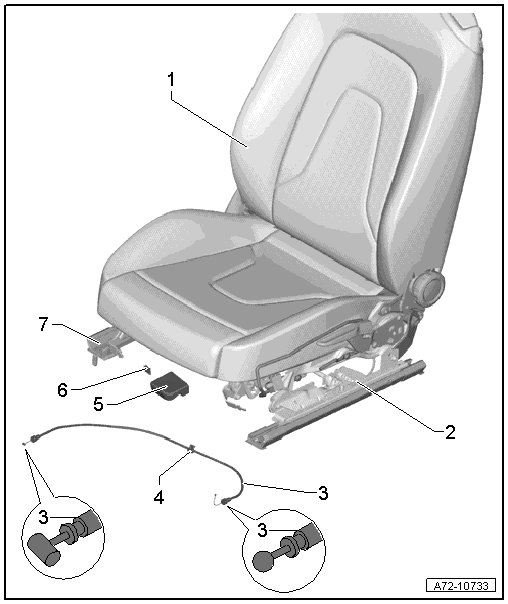

1 Front seat

2 Seat forward/back adjuster

• Part of the lower seat section assembly

• Not replaced separately

3 Seat forward/back adjuster release cable

• Removing and Installing, refer to => [ Seat Forward/Back Adjuster Release Cable ] Seat Forward/Back Adjuster Release Cable

• It is not possible to adjust the release cable

4 Clip or cable tie

5 Handle

• for seat forward/back adjustment

• Removing and Installing, refer to => [ Seat Forward/Back Adjustment Handle ] Seat Forward/Back Adjustment Handle

6 Retaining clip

• Replace the seat forward/back adjustment handle each time it is removed

• Note location, refer to => [ The springs on
the clip must be on the inner side of the lever. ] Seat Forward/Back Adjustment Handle

7 Actuator

• For seat forward/back adjustment
