Convertible Top Frame Parts Designations

Convertible Top Frame Parts Designations

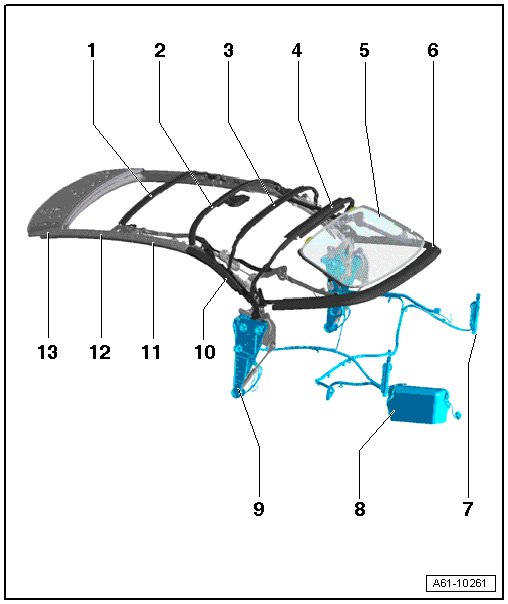

• These parts designations are used in the description.






1 Rail 1.

2 Rail 2.

3 Rail 3.

4 Rail 4.

5 Rear window

• No replacement part

6 Bracket

7 Convertible Top Compartment Cover Hydraulic Cylinder

8 Hydraulic Pump

• Removal, refer to => [ Hydraulic Pump ] Hydraulic Pump

9 Main Bracket

10 Rear Main Guide

11 Rear Roof Guide

12 Front Roof Guide

13 Front Rail
