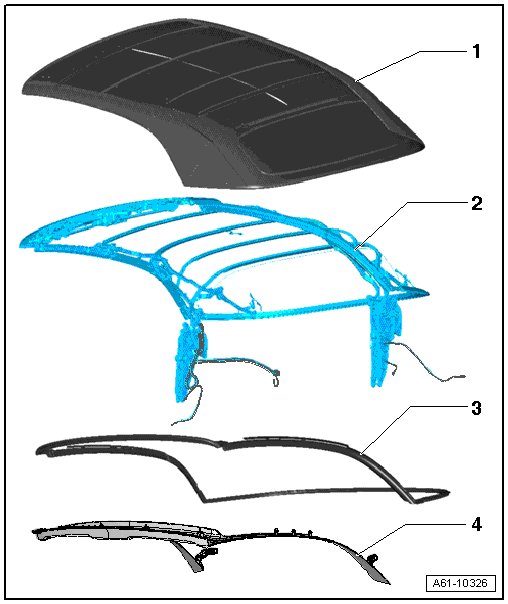

Convertible Top Cover Assembly Overview

Convertible Top Cover Assembly Overview

• The convertible top frame is not shown in the illustration.

• The convertible top remains in the vehicle to remove the cover.






1 Convertible Top Cover

• Removing => [ Convertible Top Cover ] Convertible Top Cover.

2 Convertible Top Frame

• Removing => [ Convertible Top ] Convertible Top.

3 Seals

4 Trim

Removing and installing, refer to => [ Removing the front trim ] Convertible Top Latch Assembly Overview.
