Rear Convertible Top Compartment Trim: Description and Operation

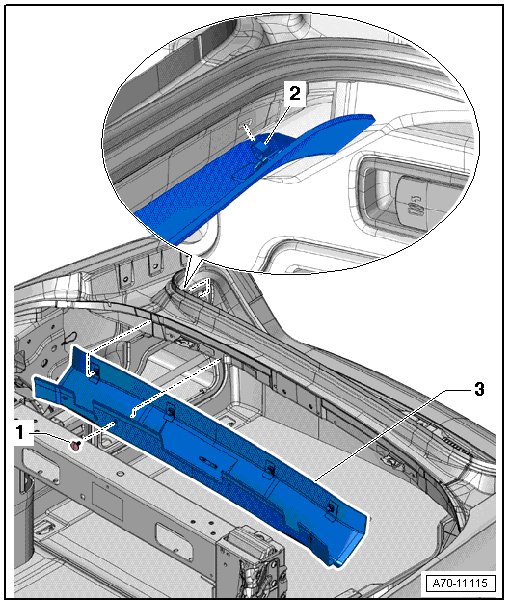

Rear Convertible Top Compartment Trim






1 Spreader clip

• Quantity: 4

2 Clips

• Quantity: 4

3 Rear convertible top compartment trim

• Removing and Installing, refer to => [ Rear Convertible Top Compartment Trim ] Rear Convertible Top Compartment Trim
