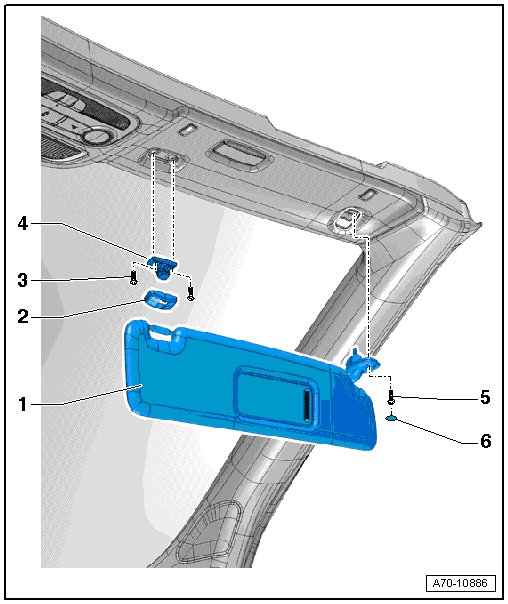

Sun Visor Assembly Overview

Sun Visor Assembly Overview






1 Sun visor

• Removing and Installing, refer to => [ Sun Visor ] Sun Visor

2 Cover

• Clipped to the center mount for the sun visor

3 Bolt

• Quantity: 2

• 2.5 Nm

4 Center bracket

• For the sun visor

• Removing and Installing, refer to => [ Sun Visor Center Bracket ] Sun Visor Center Bracket

5 Bolt

• 2.5 Nm

6 Cover

• Clipped into the sun visor
