Convertible Top Compartment Cover

Convertible Top Compartment Cover

Removing

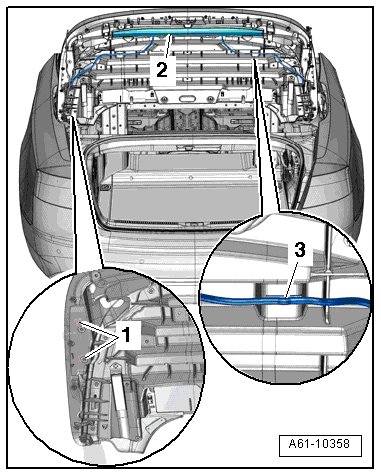

- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

- Disengage the service cover - 2 -.





- Disconnect the antenna wires.

- Free up the wiring harness on the convertible top compartment cover inner section - 3 -.

- Remove the screws - 1 - and remove the convertible top compartment cover.

Installation

• Tightening specifications, refer to => [ Stop Buffer, Convertible Top Compartment Cover Locking Motor and End Plate Assembly Overview ] Stop Buffer, Convertible Top Compartment Cover Locking Motor and End Plate Assembly Overview.

Installation is reverse of removal, but note the following:

- Connect the antenna wires.

- Adjust the convertible top compartment cover. Refer to => [ Convertible Top Compartment Cover, Adjusting ] Convertible Top Compartment Cover, Adjusting.
